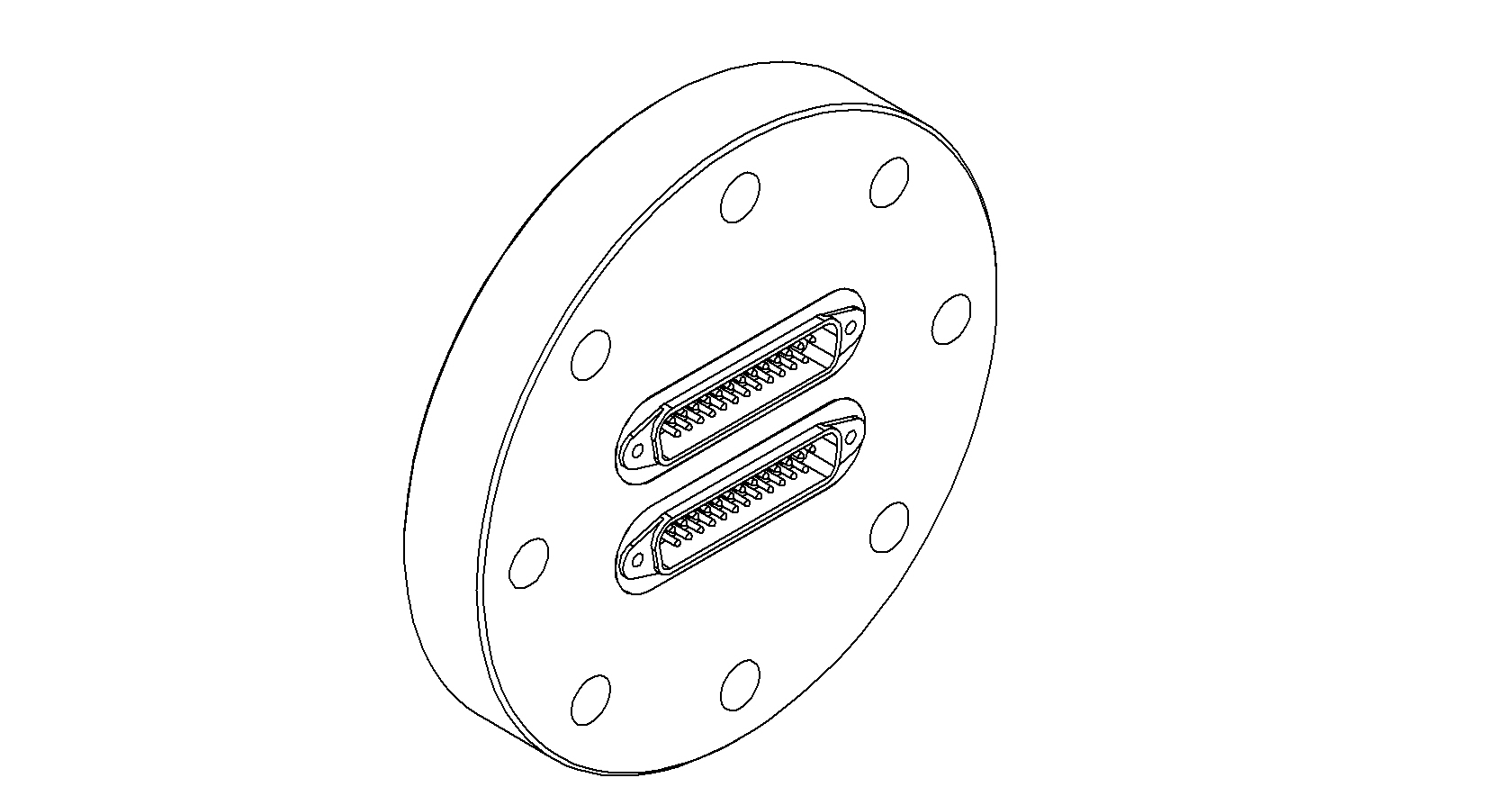

A2565-1-CF
MULTIPIN, TYPE-D, 500V, 5A, 2 x 25 PIN, 450CF
제품 특징
- Subminiature D-type Multipin Feedthrough, 2 x 25 Pins, 500 Volts, 5 Amps per Pin, 4.50" Conflat Flange
제품 상세 정보
| 항목 | 값 |
|---|---|
| cond diameter | N/A |
| configuration | 50 Pins |
| connector | No |
| current rating | 5 Amps Per Pin |
| managed | No |
| material | Ni-Fe Gold Plated |
| mount | 4.50 |
| overview mng | ● Subminiature D-type Multipin ● 2 x 25 Pins, 500 Volts, 5 Amps per Pin ● 4.50" Conflat Flange ● Feedthrough Bakeable to 250 degrees C ● Air-side Connector Included |
| overview order | 8 |
| price unit | $ |
| product order | 3 |
| quantity | 0 |
| reg date | 2017-01-18 17:19:38 |
| section | Subminiature-D |
| single | No |
| voltage | 500 V |
