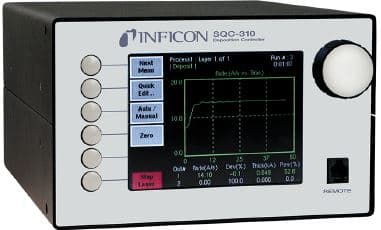

SQC-310 Thin Film Deposition Controller
SQC-310 Thin Film Deposition Controller
제품 특징
- With advanced electronics, an improved display, and a very affordable price, the INFICON SQC-310 Series gives you features not found on competitors' thin film controllers. And you can choose the ideal model for your application: sequential deposition (SQC-310) or codeposition (SQC-310C).
제품 상세 정보
| 항목 | 값 |
|---|---|
| connector | No |
| managed | No |
| overview order | 1 |
| product order | 4 |
| product spec | Measurement
QCM Inputs : SQC-310 : 2 (4 optional) SQC-310C : 4 Measurement Frequency Range : SQC-310, SQC-310C - Adjustable: 1.0 MHz minimum 6.5 MHz maximum Frequency Resolution (1) : SQC-310, SQC-310C - ± 0.012 Hz Thickness and rate resolution/measurement (2) : SQC310, SQC-310C - ±0.015 Å Frequency Stability : SQC-310, SQC-310C - ± 2 ppm total, 0 to 50C Measurement Interval : SQC-310, SQC-310C - 0.10 to 1.0 s (adjustable) Rate Display : SQC-310, SQC-310C - 0.01 Å/sec Control Storage : SQC-310, SQC-310C - 100 processes, 1000 layers, 50 films Control Outputs : SQC-310 : 2 (4 optional) SQC-310C : 4 Output Signal : SQC-310, SQC-310C - ± 0 to 10 VDC, 15 bits Digital Inputs/Relays : SQC-310 : 8/8 (16/16 optional), SQC-310C : 16/16 Digital Inputs : SQC-310, SQC-310C - 5 VDC non-isolated Relays : SQC-310, SQC-310C - SPST Form 1A, 30V, 2A max Interface(s) : SQC-310, SQC-310C - Standard RS-232 and USB (RS-232 and Ethernet optional) Remote Power Control : SQC-310, SQC-310C - Optional (IPN 782-900-017) Display Type : SQC-310, SQC-310C - 1/4 VGA 320 x 240 active matrix color LCD Graphs : SQC-310, SQC-310C - Rate, deviation, power or full screen numeric General Power : SQC-310, SQC-310C - 100-240 VAC, 50/60 Hz, 25W Compliance : SQC-310, SQC-310C - CE, RoHS Windows® Software : SQC-310, SQC-310C - Included Housing / Mounting : SQC-310, SQC-310C - 5 1/4” half-rack (1) Resolution given for 0.25 s measurement interval (2)Tooling/density = 100/1, fundamental frequency = 6 MHz, 0.25 s measurement interval |
| quantity | 0 |
| reg date | 2017-01-18 17:22:33 |
| single | No |
