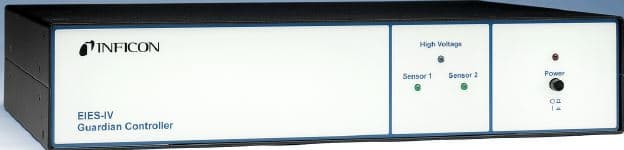

Guardian™ EIES Controller

제품 특징

• Ideal for CIGS Thin Films
• Guardian can control deposition rates from 0.1 to 10,000 Å/s. It operates one or two sensors, up to 8 optical inputs and controls up to 8 deposition sources, enabling codeposition of up to 8 materials.
• INFICON Guardian is ideal for applications such as fabrication of photovoltaic modules, OLEDs, photovoltaics, superconducting thin films and MBE.
• The Guardian Codeposition System is based on Electron Impact Emission Spectroscopy (EIES). Using EIES, the material being deposited is excited by a thermionic emitter, which results in creation of photons. The light created passes through an optical filter to a photomultiplier tube (PMT) detector, which measures the intensity of emission of the passed wavelength. The INFICON Guardian Controller then generates a signal to control the source for that material. Additional detectors, with appropriate optical filters, are used for multiple materials.
• A complete Guardian system consists of at least one sensor, one PMT detector, an optical filter, a Guardian controller unit, and a PC (user-supplied) with Guardian software. EIES is generally used to control deposition of multiple materials, so most EIES systems include additional sensors, detectors, optical components such as beam splitters, and QCMs for calibration or controlling deposition rate for some materials. More information on typical systems can be found in the Guardian Configuration Guide in the Downloads tab below.
