STM-100/MF

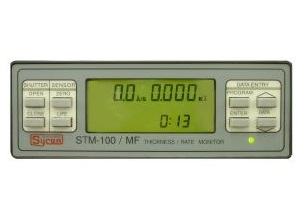

STM-100/MF Thickness Monitor
제품 특징
- The Model STM-100/MF Thickness/Rate Monitor from Sycon Instruments, Inc. is a precision mass and film thickness measurement instrument for use in thin film deposition processes and other quartz crystal microbalance applications. The STM-100/MF has proven very tough and reliable. Thousands of durable units are providing stable monitoring of depositions. Easy to setup and use, the STM-100/MF has a history that makes it the one to have for deposition monitoring.
제품 상세 정보
| 항목 | 값 |
|---|---|
| connector | No |
| managed | Yes |
| overview mng | ● Multi-Film Program Storage ● 1 Å Thickness Resolution ● 0.1 Å/Sec. Rate Resolution ● 4 measurements per second |
| overview order | 4 |
| product order | 1 |
| product spec | Multi Mode Operation :
(1)Thickness/Rate Monitor (2)Negative Thickness Monitor (3)Sensor Frequency Monitor High Speed : Four Measurements per second High Resolution : 0.1Å per second High Accuracy : ±0.5% thickness ±1 count Measurement Range : 500KÅ Aluminum Equivalent Relay Output : Four 1.5 Amp SPST N.O. Contacts 1) Shutter Control, 2) Thickness Set point, 3) Timer Set point, 4) Crystal Failure Remote Input : Four TTL Compatible inputs 1) Open Shutter, 2) Close Shutter, 3) Zero Thickness, 4) Zero Time Setpoints (1) End Thickness : 0.000 to 9999KÅ (2) Setpoint Thickness : 0.000 to 9999KÅ (3) Timer : 00:00 to 99:59 m:s Power Requirement : 120/240 VAC 50/60 Hz 2.5 VA |
