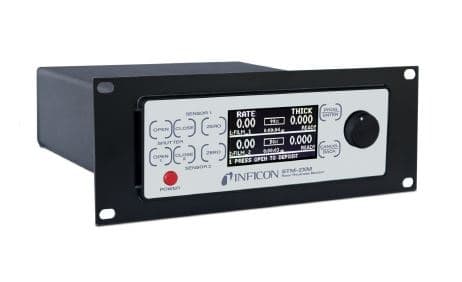

STM-2XM 2-Channel Rate/Thickness Monitor
STM-2XM 2-Channel Rate/Thickness Monitor
제품 특징
- STM-2XM is a two channel rate/thickness monitor that combines high accuracy with flexible programming and easy operation at an affordable price.
- STM-2XM is equipped with five operation modes to accommodate processes from simple to complex. For example, use simple mode to monitor just one single sensor for the simplest process or use alloy mode for codeposition monitoring. Independent mode allows STM-2XM to function as two completely separate monitors.
- Two sensor inputs allow for the use of two single or one dual quartz crystal sensor. 10 measurements are taken per second while achieving a resolution of 0.037 Å per measurement (density of 1).
제품 상세 정보
| 항목 | 값 |
|---|---|
| connector | No |
| managed | Yes |
| overview mng | ● Two measurement channels ● Eight programmable digital inputs ● Eight programmable digital outputs ● High accuracy at 10 readings per second ● Displays mass or thickness |
| overview order | 5 |
| product order | 3 |
| product spec | Type : STM-2XM
Compatible sensors : Single/shuttered single or dual QCM sensor Sensor inputs : Two Measurement frequency range : 6.0 to 5.0 MHz (fixed) Frequency resolution : ±0.03 MHz at 6 MHz Reference frequency stability : ±2 ppm Thickness and rate resolution/measurement : ±0.037 Å @ tooling/density = 100/1, fundamental frequency = 6 MHz Measurement interval : 0.10 s Stored films : 15 Display mode : Thickness/Mass Digital inputs : Eight Digital outputs : Eight Analog outputs : Four Analog output rating : 0 to +/-10 V, 10 mA Relay rating : Up to 48 V (dc) • V (ac), 2A Power requirement : 120/240, 50/60 Hz, 2.5 VA |
| quantity | 0 |
| reg date | 2017-01-18 17:22:33 |
| single | No |
