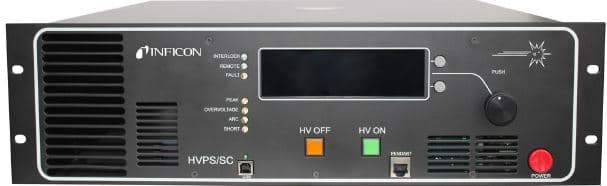

HVPS/SC High Voltage Power Supply with Integrated Source Control
HVPS/SC High Voltage Power Supply with Integrated Source Control
제품 특징
- HVPS/SC is a solid state high voltage power supply with an integrated source controller used in electron beam (e-beam) vacuum deposition systems. Its revolutionary design makes it one of the smallest, most efficient, and feature packed high voltage power supplies on the market.
- POWERFUL PERFORMANCE
- HVPS/SC has adjustable output voltage from 4 to 10.2 kV and adjustable emission current from 10 to 999 mA. This makes it compatible with a variety of electron beam guns. Zero voltage switching (ZVS) technology and near unity power factor help make the HVPS/SC over 90% efficient with less than 1% emission current ripple for a precise and reliable electron beam.
- BUILT TO LAST
- HVPS/SC is rugged and reliable. Designed for continuous duty and/or continuous arcing, full arc recovery can be achieved in just 15 ms. A low stored energy of less than 2 Joules of energy at 10 kW helps quickly dissipate arcs with minimal effect on rate control. Each HVPS/SC is fully tested and burned in to ensure proper operation and durability.
제품 상세 정보
| 항목 | 값 |
|---|---|
| connector | No |
| managed | No |
| overview order | 1 |
| product order | 1 |
| product spec | Type : HVPS/SC
Electron beam gun outputs : One Emission current : 10 to 999 mA HV output voltage : 4k – 10.2 kV (negative relative to ground) Filament current range : 0 – 70 Amps, 12V Filament current regulation : Less than 1% Energy storage : Less than 2 J at 10 kW output Ripple and regulation : Less than 1% Arc event response : Full recovery in about 15 ms Short circuit protection : Yes Over-voltage protection : Yes Over-heating protection : Yes User interface : 240 x 64 backlit high-contrast, long-life LCD, seven status indicators, spin knob, dedicated system keys Interface input rating : 5-36 V (ac) • V (dc) isolated or grounded non-isolated, contact closure Digital input functions : Door/Safety Interlock, Remote Mode, Remote On, Vac and Water interlocks Filament output : Supply cable Analog input : 0 – 10 V emission current control input Analog outputs (2) : 0 – 10 V indicating 0 – 1000 mA, 0 – 10 V indicating 0 –10 kV Relay rating/output functions : SPST, 30 V (dc) or RMS, 2 Amp, Power Supply On, Power Supply Ready Communications : USB, RS-232/RS-485 Operating temperature : 10° to 40°C Cooling : Forced air, two internal fans Size : Front panel (H x W): 3U height, full rack width 13.21 x 48.26 cm (5.2 x 19.0 in.) Case (H x W x D): 13.21 x 43.43 x 43.69 cm (5.2 x 17.1 x 17.2 in.) Weight : 22.7 kg (50 lb.) Input power : 3-phase, 208 or 400 V Power factor : 0.99 (near unity) Compliance : CE, RoHS |
