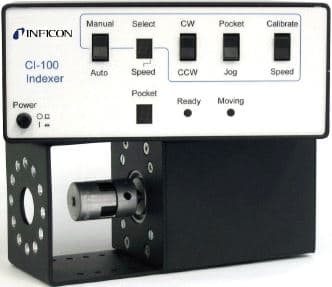

CI-100 Crucible Indexer
CI-100 Crucible Indexer
제품 특징
- The CI-100 Crucible, or Turret, Indexer is used to rotate multi-pocket electron beam gun sources through a rotary vacuum feedthrough. It consists of a controller, motor drive, mounting bracket, and interconnecting cable. The configuration is flexible to adapt to your specific system and process. Setup and operation are simple and intuitive. The CI-100 is compatible with virtually all electron beam gun sources, and the digital I/O is compatible with existing turret indexers.
제품 상세 정보
| 항목 | 값 |
|---|---|
| connector | No |
| managed | No |
| overview order | 1 |
| product order | 3 |
| product spec | Type : CI-100 Crucible Indexer
Motor Drive motor type : micro-stepper torque : 1.1 N-m (160 oz. in.) speed (RPM) : low: 0.05, 0.06, 0.08, 0.10, 0.12, 0.15, 0.19, 0.24, 0.30, 0.37 high: 0.5, 0.6, 0.8, 1.0, 1.2, 1.5, 1.9, 2.4, 3.0, 3.7 resolution : 1.8° repeatability : 0.25° size (height x width x depth) : 89 mm x 89 mm x 122 mm (3.5" x 3.5" x 4.8") weight : 1.5 Kg (3.2 lb.) power : 12 W (supplied by controller) Controller pockets : up to 8 digital inputs : binary or BCD encoded low = 0 to 2 V (dc), high = 4 to 24 V (dc), non-isolated communications : RS-232 size (height x width x depth) : 88 mm x 213 mm x 197 mm (3.5" x 8.4"x7.75") weight : 2.7 kg (6 lbs.) power : 100-120 / 200-240 V (ac), 50/60 Hz, 20 W compliance : CE (LVD & ECD) interconnecting cable : 3 m (10'), standard DB25 |
