Multi-Port, VAC-U-FLANGE®
제품 특징

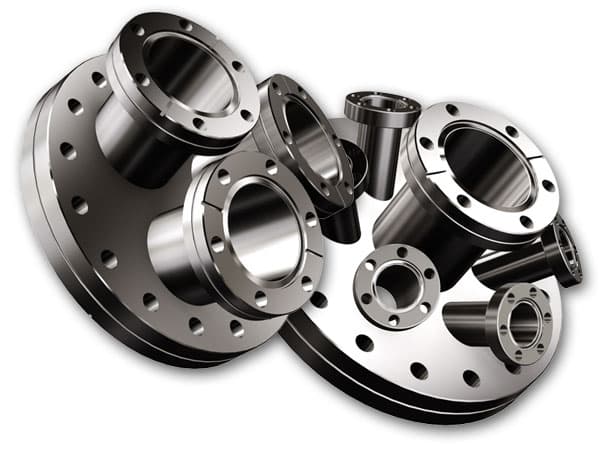

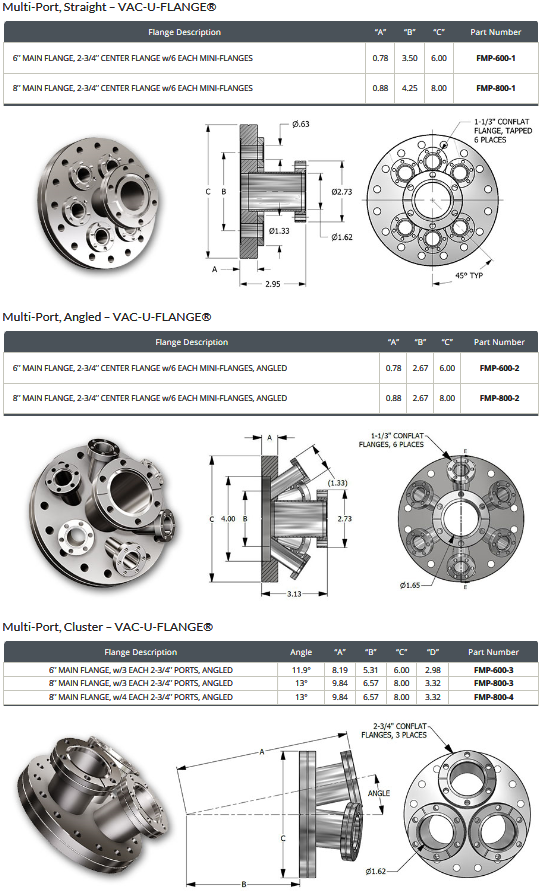

- Huntington Labs multi-port flanges comprise a line of flanges designed for multiple device or port mounting in a very compact flange configuration. The Straight Multi-Port flange includes 6 mini-port flanges (1-1/3″) and a single 2-3/4″ flange on either a 6″ or 8″ main flange. The Angled Multi-Port Flange series features a similar configuration with the mini flanges positioned at an angle away from the base. The Cluster Multi-Port Flange is available in 6″ and 8″ main flanges and features up to 4 each 2-3/4″ flanges mounted at an angle about the center axis.
- Made from: 304 Stainless Steel
- Add Additional Ports to Flange
- Multiple Port Configurations
