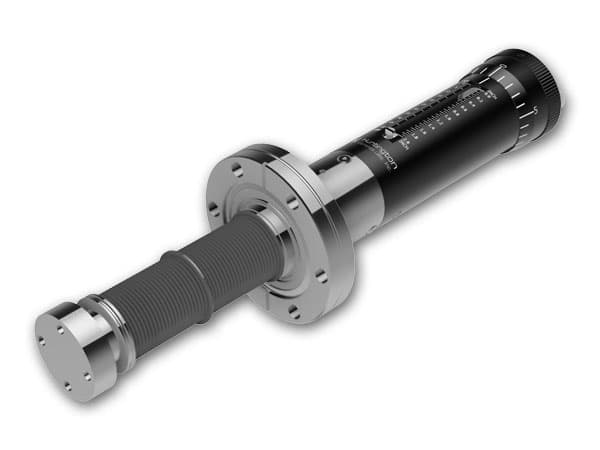

Standard Linear Feedthrough, Manual
제품 특징

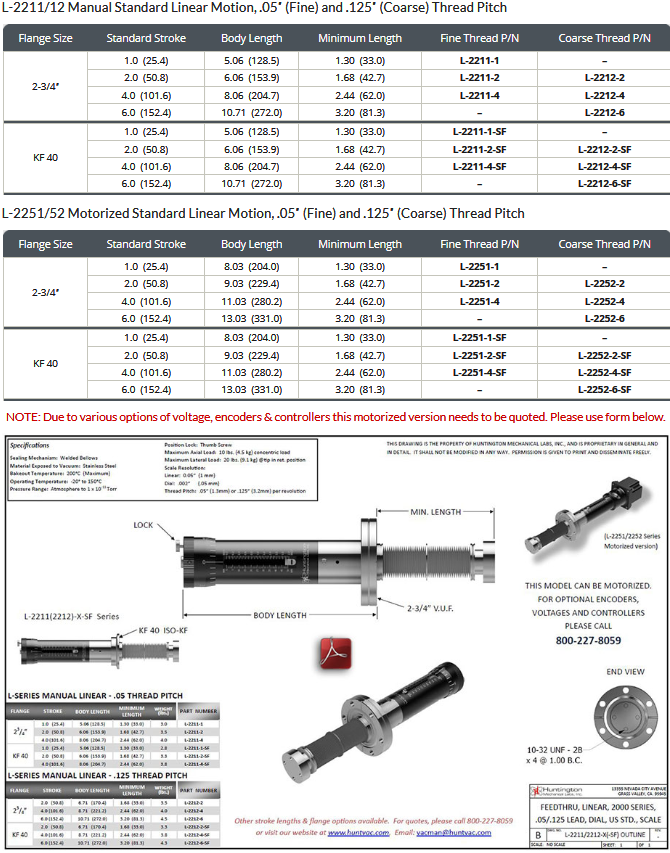

- Huntington’s L-Series Standard Linear Motion Feedthroughs incorporate a unique modular design which accommodates three actuator options on two basic shaft/body configurations. Each combination of body and actuator is available in three standard stroke lengths with special lengths available upon request. The L-2211 Series feature a fine thread for more precision while the L-2212 Series feature a coarse thread for faster travel.
- SST Flange w/Aluminum body
- Analog Scale, Optional Motorized
- Bakeout: 200° C (Max)
제품 상세 정보
| 항목 | 값 |
|---|---|
| connector | No |
| managed | No |
| overview order | 1 |
| product order | 6 |
| quantity | 0 |
| reg date | 2017-02-27 11:02:18 |
| single | No |
