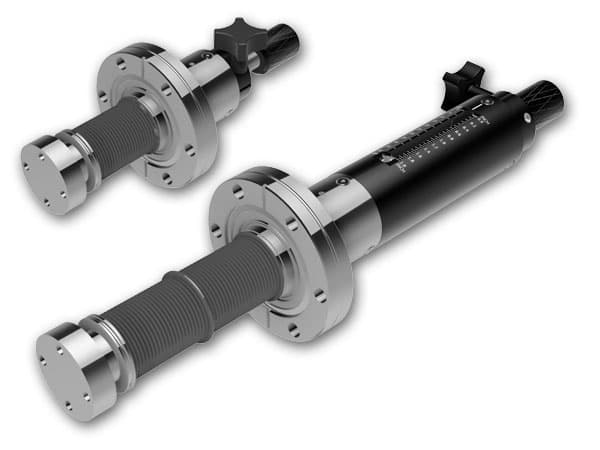

Standard Linear Feedthrough, Push-Pull Standard & Compact Length
제품 특징
- Huntington’s L-Series Linear Motion Feedthroughs incorporate a unique modular design which allows for actuators to be be easily retrofitted in the field often without breaking vacuum. Body configurations include 1-1/3” and 2-3/4” VAC-U-FLANGE® or SPEED SYSTEM KF 16 and KF 40 sizes. Optional Long-Life (LL) versions are constructed with million-cycle guaranteed bellows.
- SST Flange w/Aluminum body
- Analog Scale, Standard & Compact
- Bakeout: 200° C (Max)
제품 상세 정보
| 항목 | 값 |
|---|---|
| connector | No |
| managed | No |
| overview order | 1 |
| product order | 7 |
| quantity | 0 |
| reg date | 2017-02-27 11:02:24 |
| single | No |
