Baseplate Feedthrough, Rotary Direct Drive
제품 특징
- "SPECIFICATIONS:

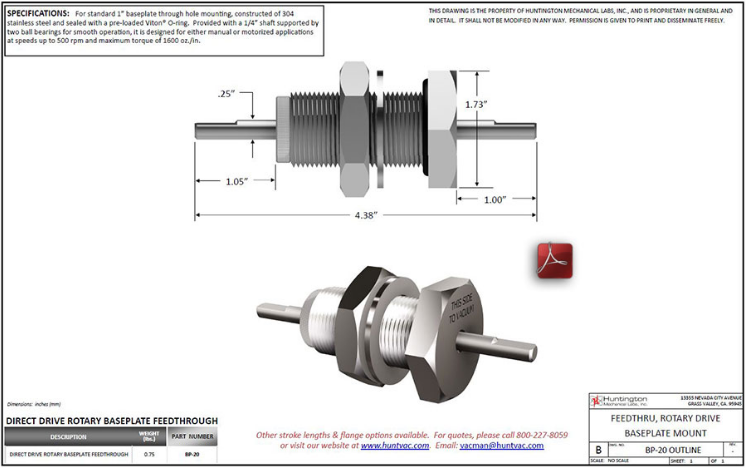

- For standard 1” baseplate through hole mounting, our BP-20 model is constructed of 304 stainless steel and sealed with a pre-loaded Viton® O-ring. Provided with a 1/4” shaft supported by two ball bearings for smooth operation, it is designed for either manual or motorized applications at speeds up to 500 rpm and maximum torque of 1600 oz./in. Bakeout Temperature: 200° C (Max)"
- SST Body, Viton® Seal
- Ball Bearings for High Speed
- Bakeout: 200° C (Max)
