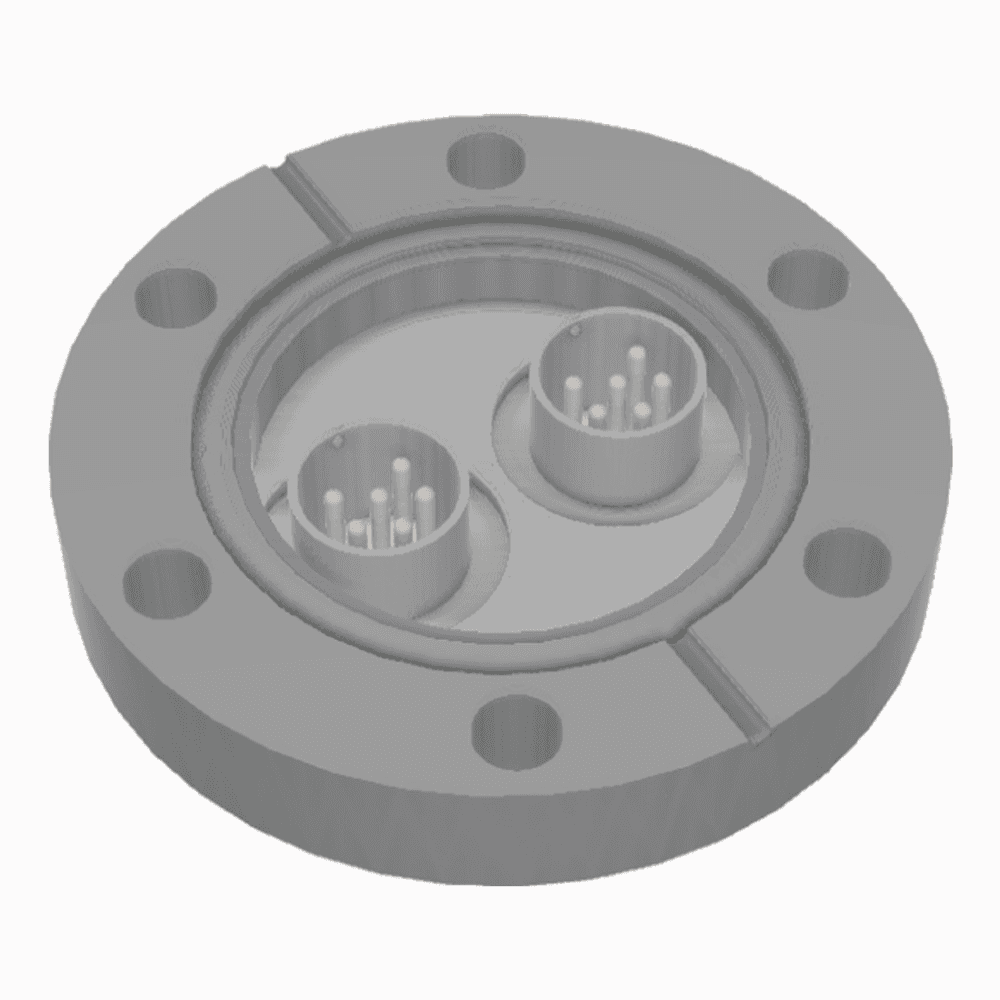

220-CM6-C40-2
DN40CF FLANGE, 2 x 6 PIN CIRCULAR MINIATURE FEEDTHROUGHS, UHV, 500V DC, 5 AMPS MAX
제품 특징
- DN40CF FLANGE, 2 x 6 PIN CIRCULAR MINIATURE FEEDTHROUGHS, UHV, 500V DC, 5 AMPS MAX
제품 상세 정보
| 항목 | 값 |
|---|---|
| amps | 5A |
| cond diameter | 1.6 mm |
| connector | No |
| managed | No |
| material | Conductor: NiFe, Body: Circular Miniature (CM) |
| mount | 40CF |
| overview mng | UHV <5x10-10 mbar-l/sec, -200oC to 220oC |
| overview order | 0 |
| pin number | 12 (2 X 6) |
| product order | 4 |
| quantity | 0 |
| reg date | 2019-03-22 13:32:13 |
| section | CM FEEDTHROUGHS |
| single | No |
| voltage | 500V |
