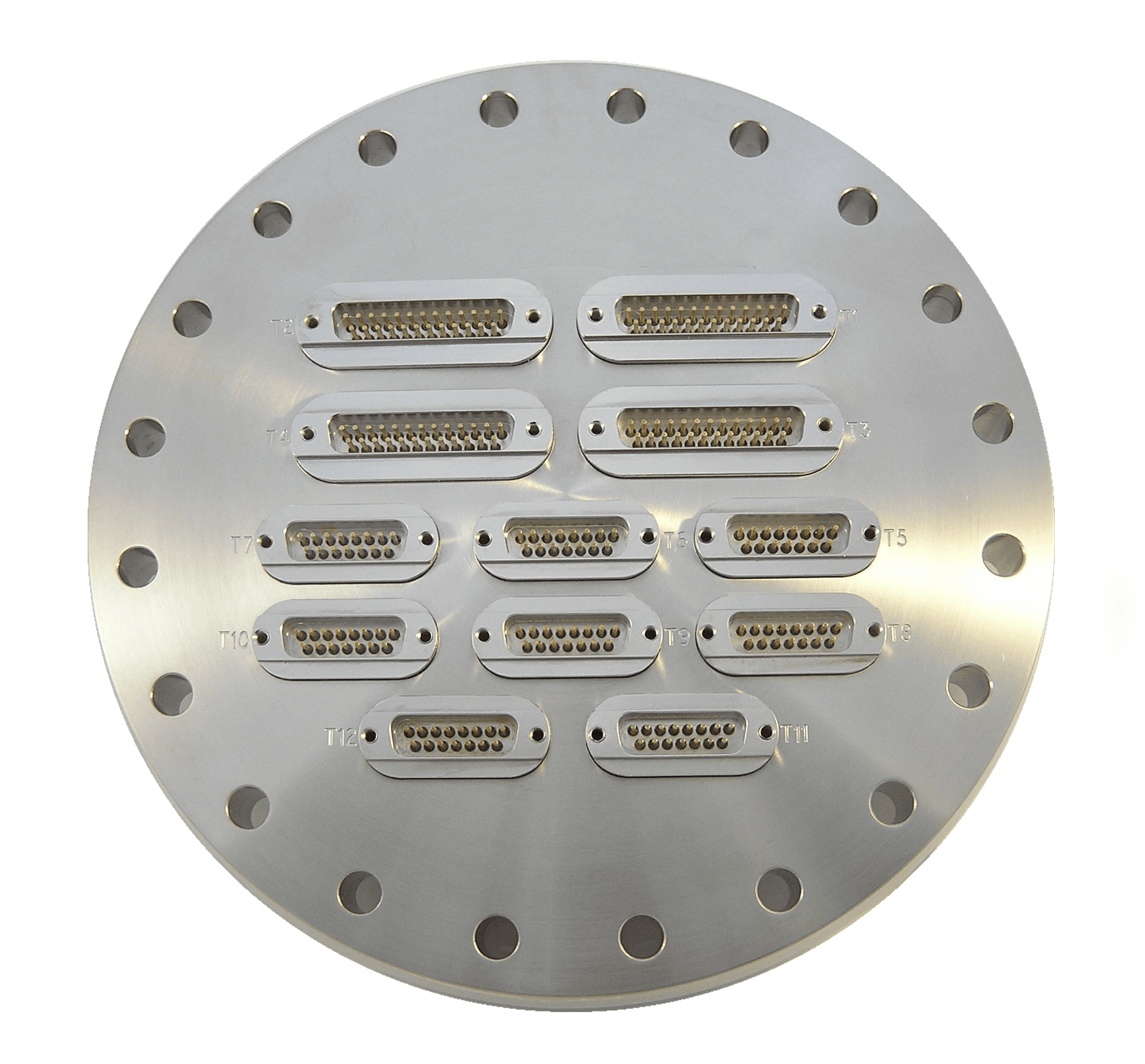

210-D37-C100-HC
DN100CF FLANGE, SUB-D 37-WAY FEEDTHROUGH, UHV, HIGH CURRENT, 10A
제품 특징
- DN100CF FLANGE, SUB-D 37-WAY FEEDTHROUGH, UHV, HIGH CURRENT, 10A
제품 상세 정보
| 항목 | 값 |
|---|---|
| amps | 6A per pin all loaded, 10A for 5 minutes |
| cond diameter | 1 mm |
| connector | No |
| connnection type | male |
| managed | No |
| material | Conductor: Proprietary metal Au plated, Body: SUS |
| mount | DN100CF (6” OD flange) |
| overview order | 0 |
| pin number | 37 |
| product order | 6 |
| quantity | 0 |
| reg date | 2019-03-26 18:46:02 |
| section | HIGH CURRENT SUB-D |
| single | No |
| voltage | 500V |
