210-X15-5P-C63-2

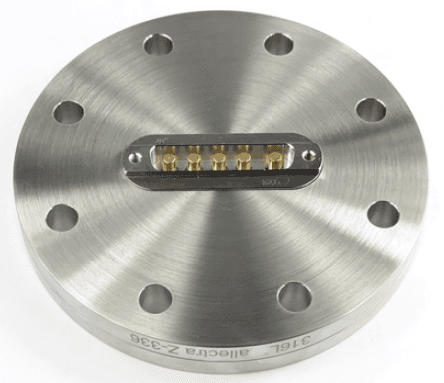

Sub-D Feedthroughs on CF Flanges, POWER and MIXED POWER
제품 특징
- Sub-D Feedthroughs on CF Flanges, POWER and MIXED POWER
제품 상세 정보
| 항목 | 값 |
|---|---|
| amps | Standard 3A per pin, Power Pin: 20A continuous |
| cond diameter | P: 3.6 mm |
| connector | No |
| managed | No |
| material | Conductor: NiFe Au plated, Body: SUS |
| mount | DN63CF (4 ½ " OD flange) |
| overview order | 0 |
| pin number | 2x 5P (10P) |
| product order | 6 |
| quantity | 0 |
| reg date | 2019-03-27 08:57:13 |
| section | POWER SUB-D |
| single | No |
| voltage | 500V |
