High Current
총 54개 제품
상위 분류: Multipin

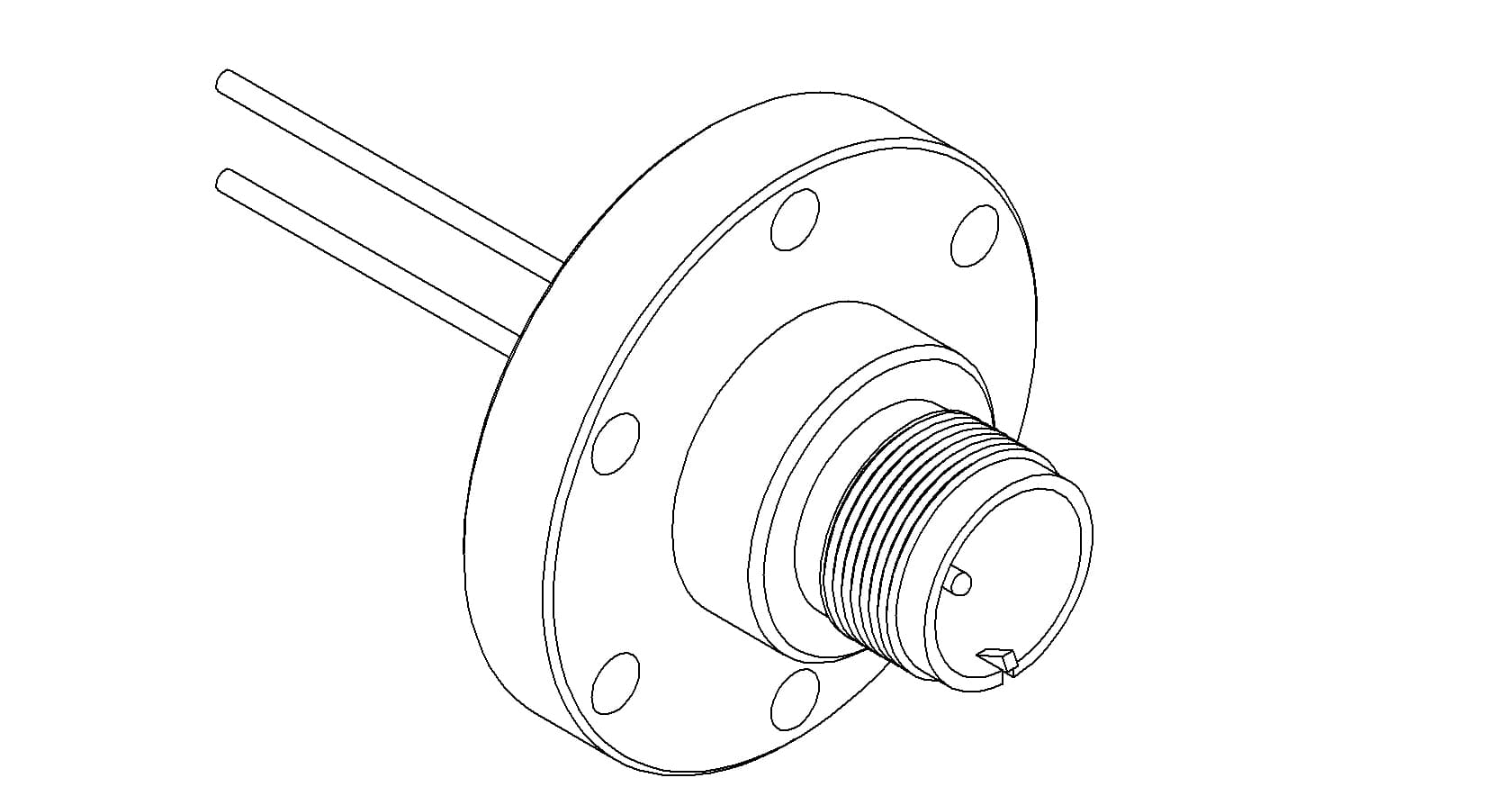

A0754-2-CF
MULTIPIN, 2 PIN, 700V, 15A, 275CF
MS High Current Series, Multipin Feedthrough, 2 Pins, 700 Volts, 15 Amps per Pin, 0.094" Nickel Conductors, 2.75" Conflat Flange

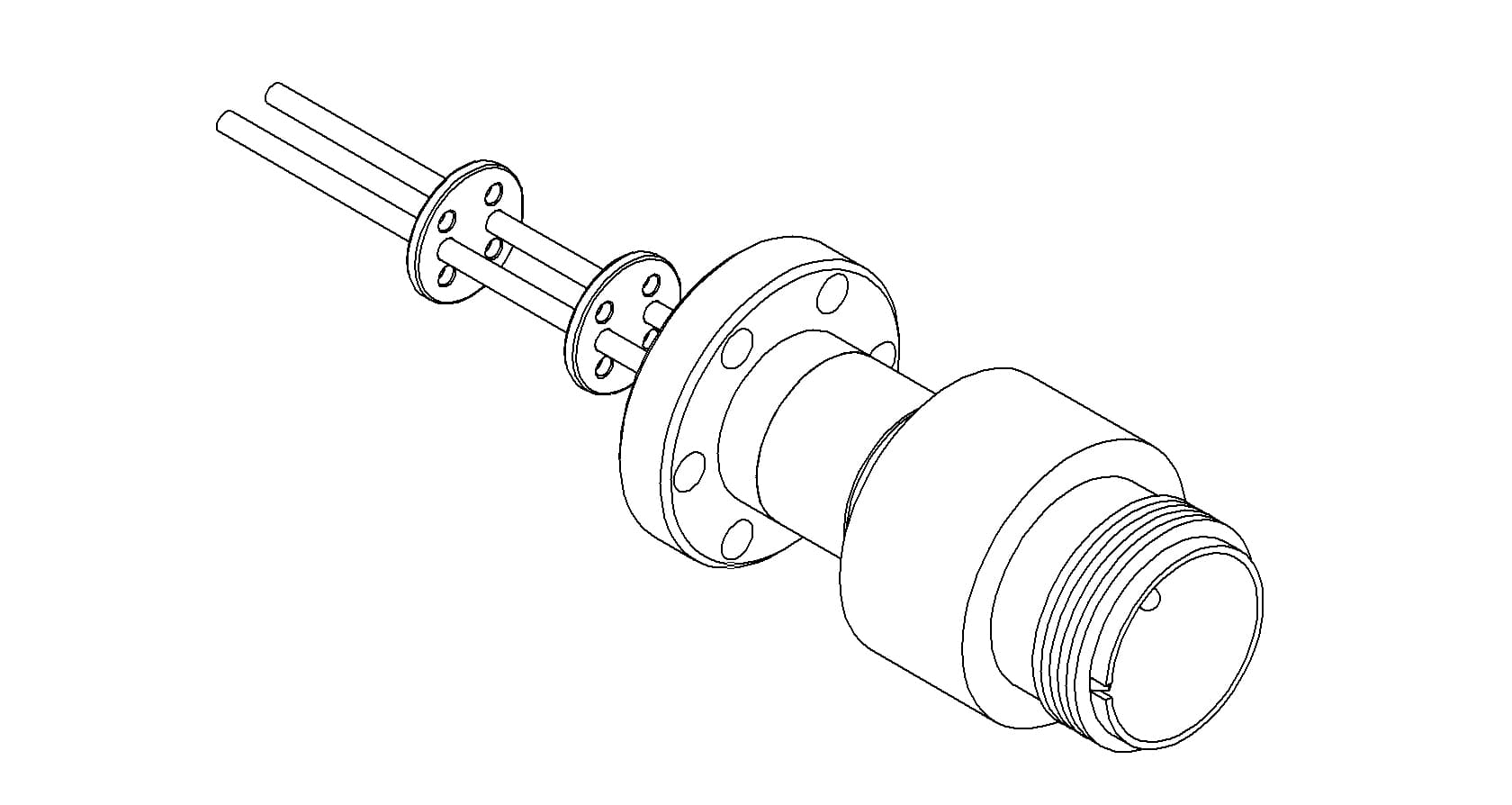

A2568-1-CF
MULTIPIN, 2 PIN, 700V, 16A, 133CF
MS High Current Series, Multipin Feedthrough, 2 Pins, 700 Volts, 16 Amps per Pin, 0.094" Nickel Conductors, 1.33" Conflat Flange

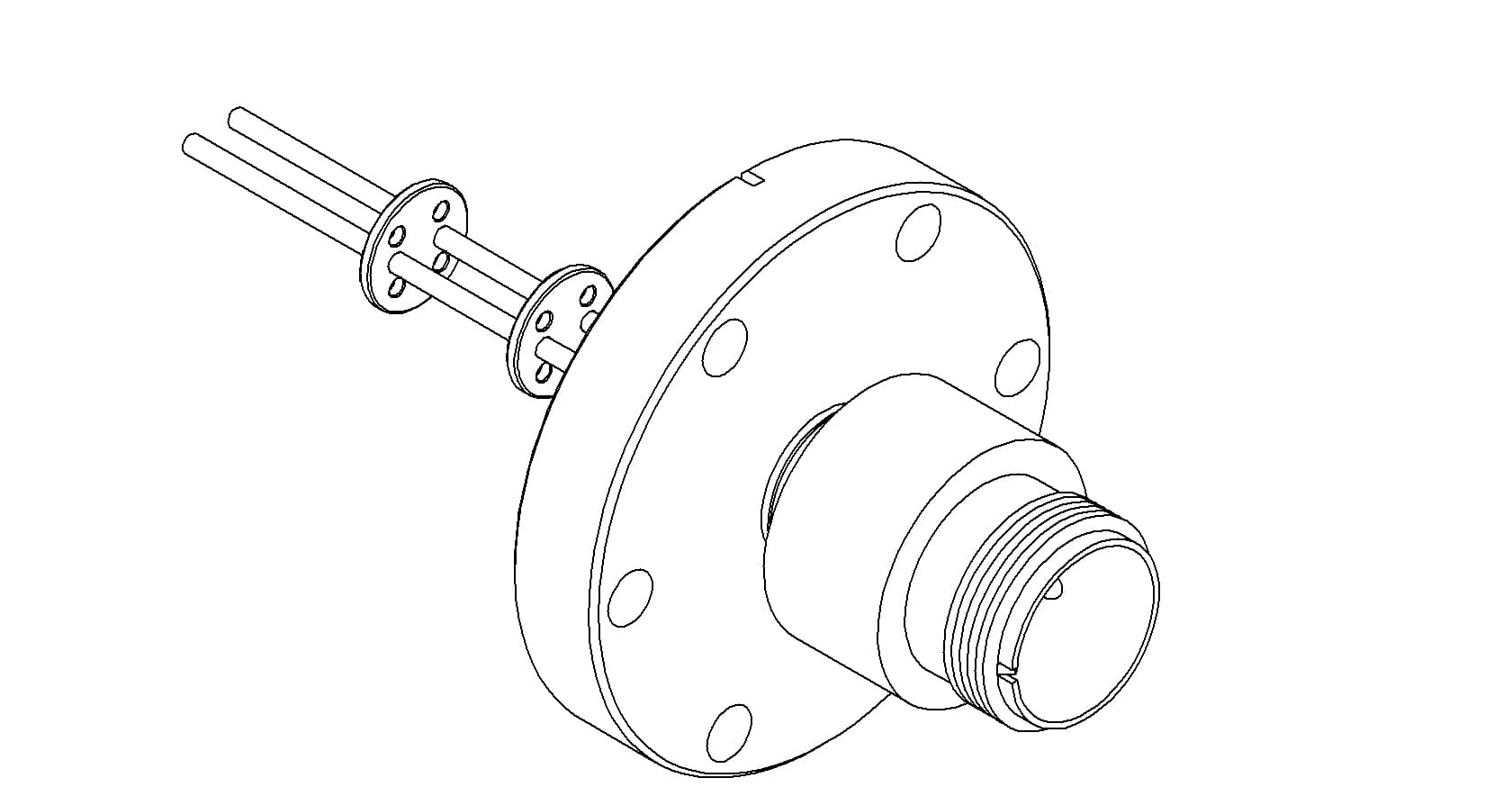

A2569-1-CF
MULTIPIN, 2 PIN, 700V, 16A, 275CF
MS High Current Series, Multipin Feedthrough, 2 Pins, 700 Volts, 16 Amps per Pin, 0.094" Nickel Conductors, 2.75" Conflat Flange
A2567-1-QF
MULTIPIN, 2 PIN, 700V, 16A, QF16
MS High Current Series, Multipin Feedthrough, 2 Pins, 700 Volts, 16 Amps per Pin, 0.094" Nickel Conductors, 1.18" Quick Flange

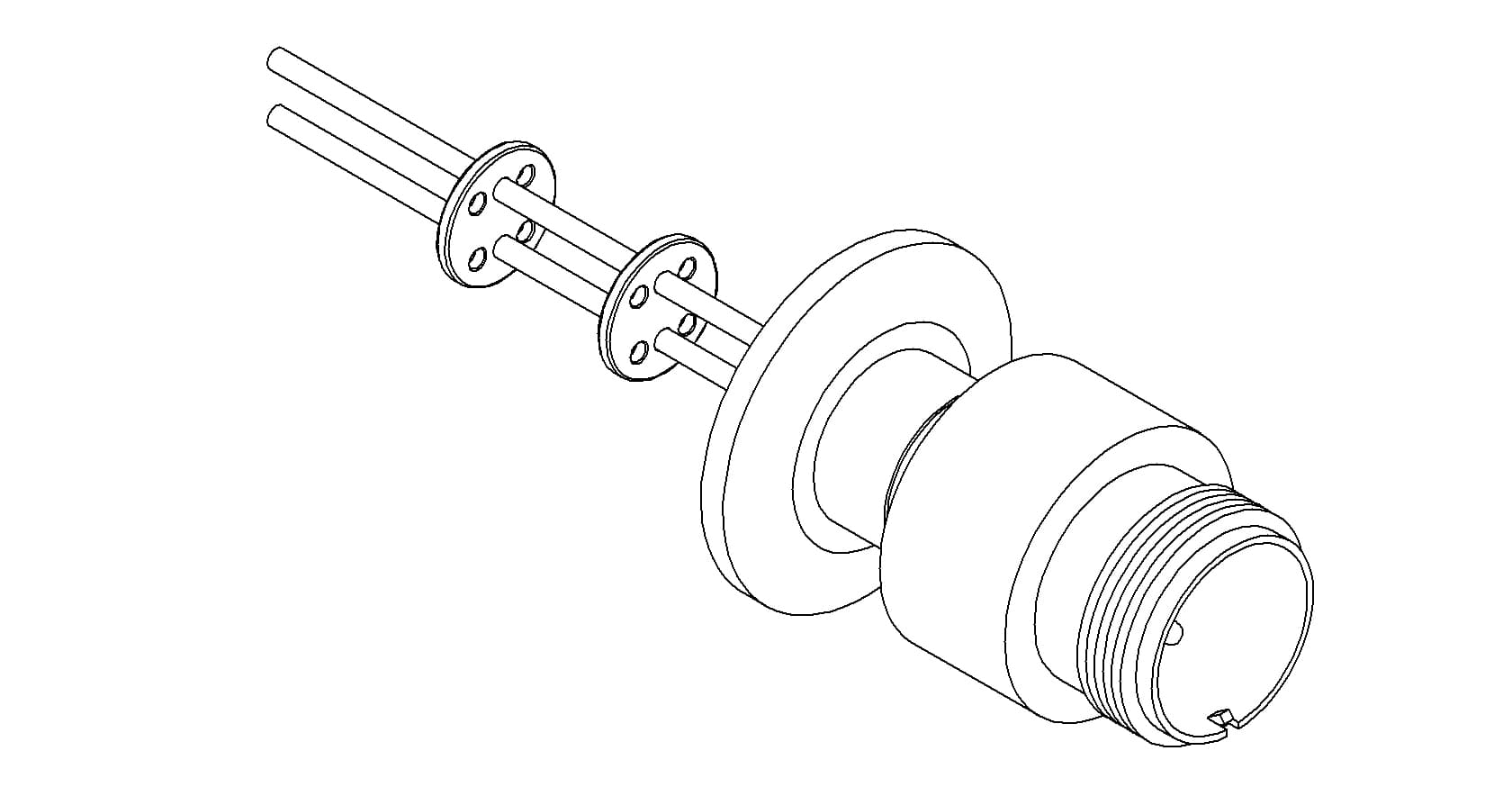

A3991-1-QF
MULTIPIN, 2 PIN, 700V, 16A, QF25
MS High Current Series, Multipin Feedthrough, 2 Pins, 700 Volts, 16 Amps per Pin, 0.094" Nickel Conductors, 1.57" Quick Flange
A3992-1-QF
MULTIPIN, 2 PIN, 700V, 16A, QF40
MS High Current Series, Multipin Feedthrough, 2 Pins, 700 Volts, 16 Amps per Pin, 0.094" Nickel Conductors, 2.16" Quick Flange
A2566-1-W
MULTIPIN, 2 PIN, 700V, 16A, WELD
MS High Current Series, Multipin Feedthrough, 2 Pins, 700 Volts, 16 Amps per Pin, 0.094" Nickel Conductors, 0.75" Dia Stainless Steel Weld Adapter
A0754-1-CF
MULTIPIN, 2 PIN, 700V, 23A, 275CF
MS High Current Series, Multipin Feedthrough, 2 Pins, 700 Volts, 23 Amps per Pin, 0.094" Copper Conductors, 2.75" Conflat Flange
A5077-3-CF
MULTIPIN, 2 PIN, 700V, 25A, 275CF
MS High Current Series, Multipin Feedthrough, 2 Pins, 700 Volts, 25 Amps per Pin, 0.142" Nickel Conductors, 2.75" Conflat Flange
A5078-3-QF
MULTIPIN, 2 PIN, 700V, 25A, QF40
MS High Current Series, Multipin Feedthrough, 2 Pins, 700 Volts, 25 Amps per Pin, 0.142" Nickel Conductors, 2.16" Quick Flange

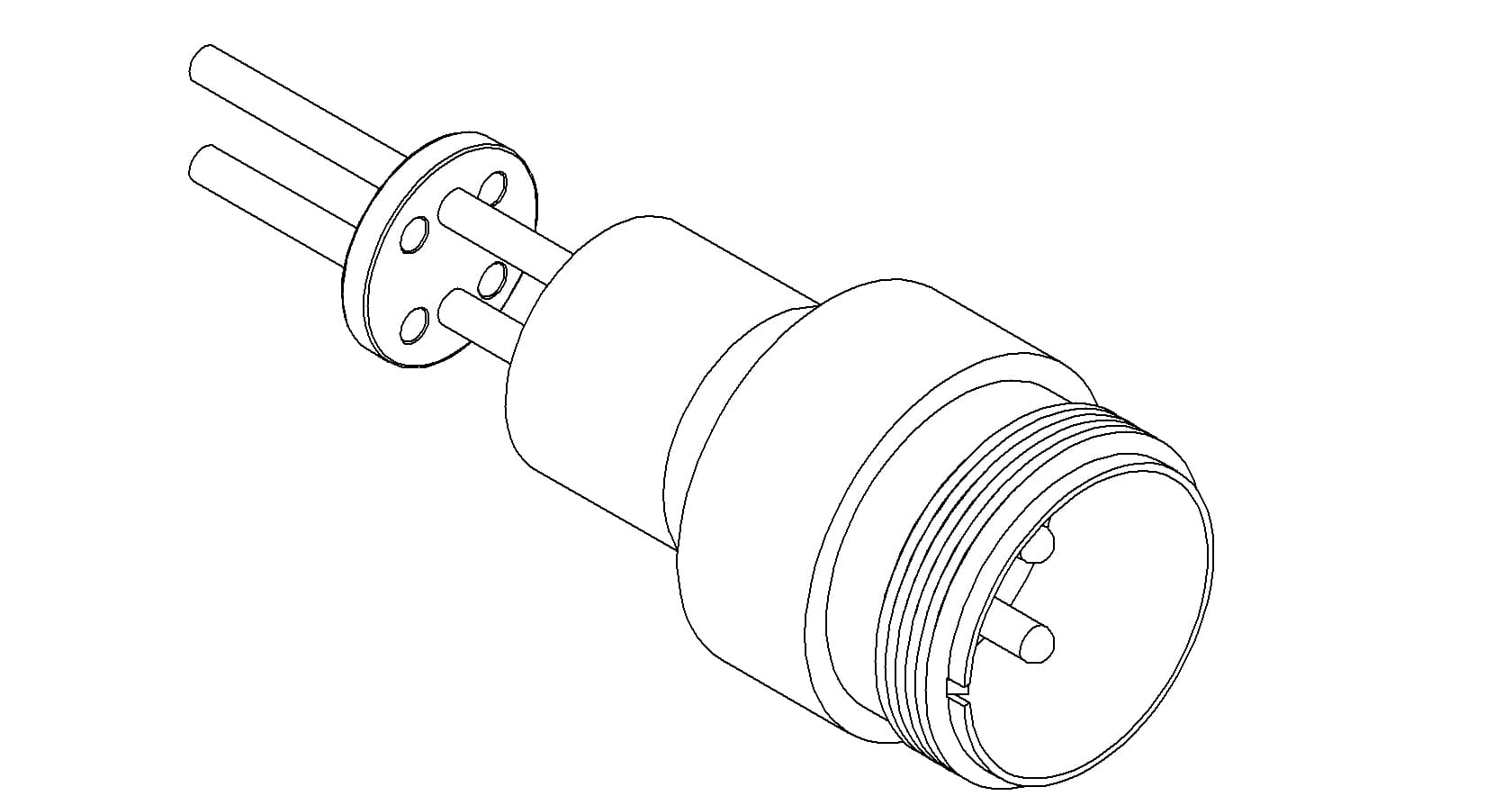

A5076-3-W
MULTIPIN, 2 PIN, 700V, 25A, WELD
MS High Current Series, Multipin Feedthrough, 2 Pins, 700 Volts, 25 Amps per Pin, 0.142" Nickel Conductors, 1.00" Dia Stainless Steel Weld Adapter
A2568-3-CF
MULTIPIN, 2 PIN, 700V, 28A, 133CF
MS High Current Series, Multipin Feedthrough, 2 Pins, 700 Volts, 28 Amps per Pin, 0.094" Moly Conductors, 1.33" Conflat Flange
A2569-3-CF
MULTIPIN, 2 PIN, 700V, 28A, 275CF
MS High Current Series, Multipin Feedthrough, 2 Pins, 700 Volts, 28 Amps per Pin, 0.094" Moly Conductors, 2.75" Conflat Flange

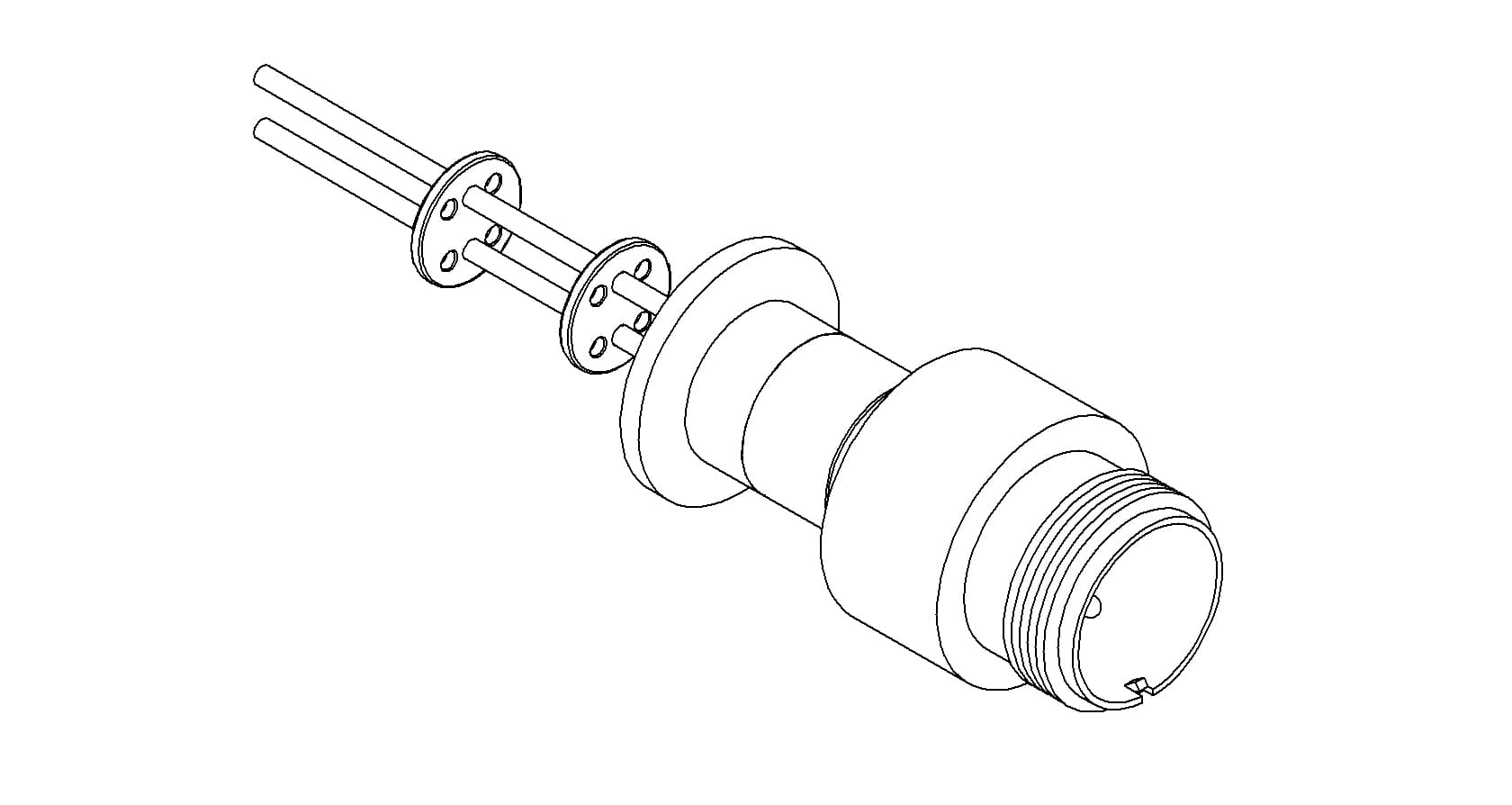

A2567-3-QF
MULTIPIN, 2 PIN, 700V, 28A, QF16
MS High Current Series, Multipin Feedthrough, 2 Pins, 700 Volts, 28 Amps per Pin, 0.094" Moly Conductors, 1.18" Quick Flange

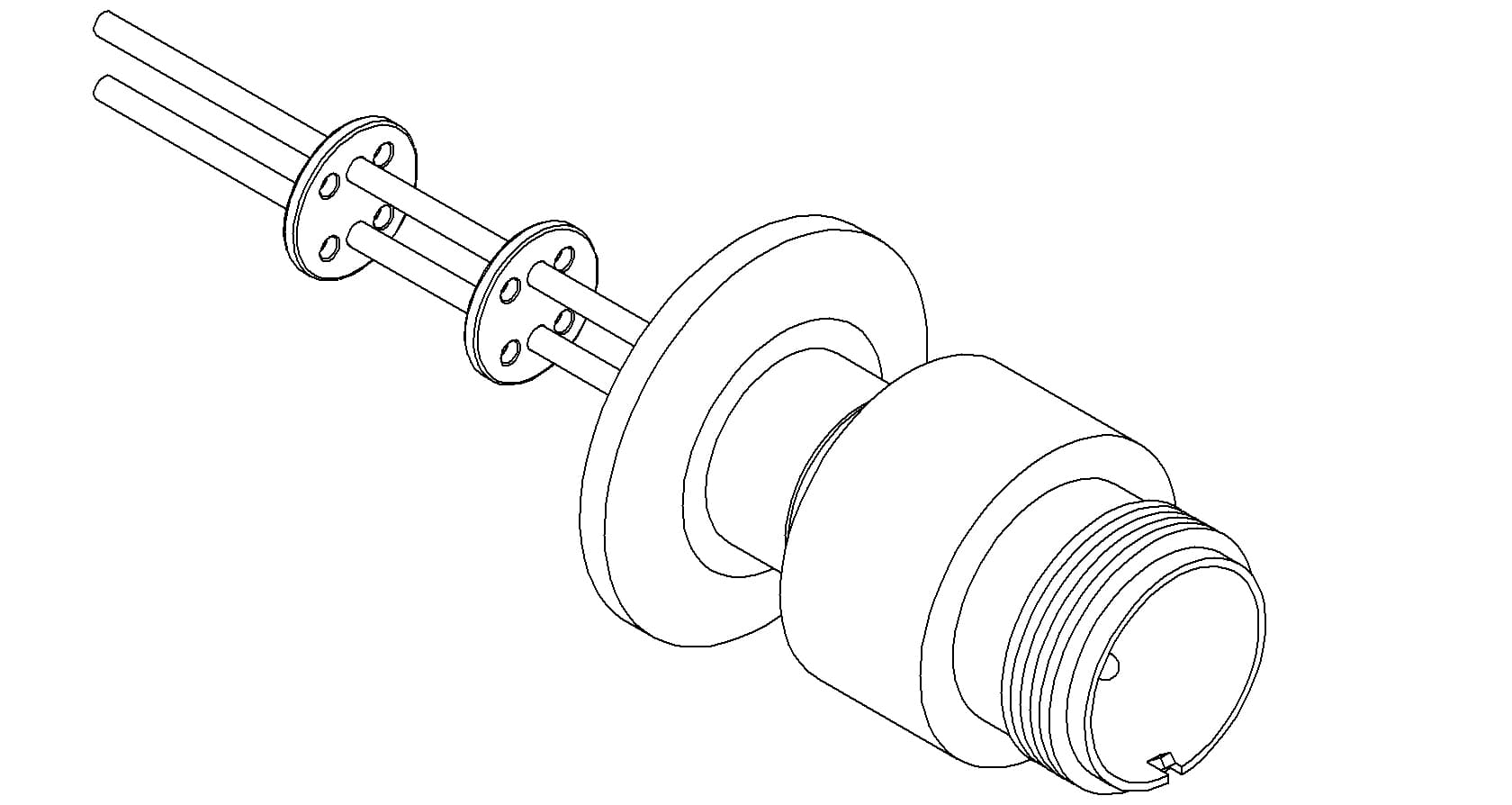

A3991-3-QF
MULTIPIN, 2 PIN, 700V, 28A, QF25
MS High Current Series, Multipin Feedthrough, 2 Pins, 700 Volts, 28 Amps per Pin, 0.094" Moly Conductors, 1.57" Quick Flange
A3992-3-QF
MULTIPIN, 2 PIN, 700V, 28A, QF40
MS High Current Series, Multipin Feedthrough, 2 Pins, 700 Volts, 28 Amps per Pin, 0.094" Moly Conductors, 2.16" Quick Flange
A2566-3-W
MULTIPIN, 2 PIN, 700V, 28A, WELD
MS High Current Series, Multipin Feedthrough, 2 Pins, 700 Volts, 28 Amps per Pin, 0.094" Moly Conductors, 0.75" Dia Stainless Steel Weld Adapter
A5077-1-CF
MULTIPIN, 2 PIN, 700V, 40A, 275CF
MS High Current Series, Multipin Feedthrough, 2 Pins, 700 Volts, 40 Amps per Pin, 0.142" Moly Conductors, 2.75" Conflat Flange
A5078-1-QF
MULTIPIN, 2 PIN, 700V, 40A, QF40
MS High Current Series, Multipin Feedthrough, 2 Pins, 700 Volts, 40 Amps per Pin, 0.142" Moly Conductors, 2.16" Quick Flange

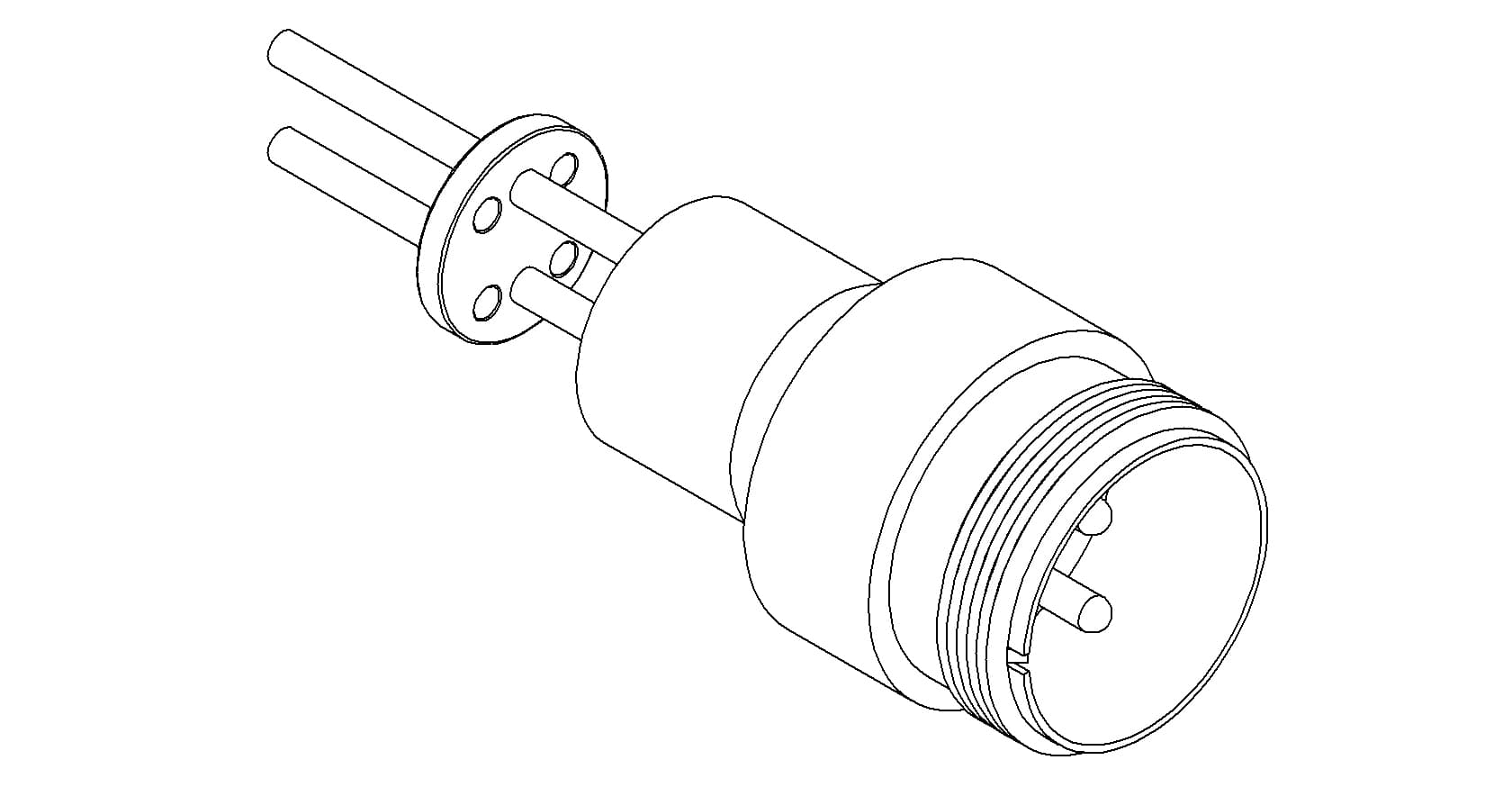

A5076-1-W
MULTIPIN, 2 PIN, 700V, 40A, WELD
MS High Current Series, Multipin Feedthrough, 2 Pins, 700 Volts, 40 Amps per Pin, 0.142" Moly Conductors, 1.00" Dia Stainless Steel Weld Adapter
A0753-2-CF
MULTIPIN, 3 PIN, 700V, 15A, 275CF
MS High Current Series, Multipin Feedthrough, 3 Pins, 700 Volts, 15 Amps per Pin, 0.094" Nickel Conductors, 2.75" Conflat Flange
A0753-1-CF
MULTIPIN, 3 PIN, 700V, 23A, 275CF
MS High Current Series, Multipin Feedthrough, 3 Pins, 700 Volts, 23 Amps per Pin, 0.094" Copper Conductors, 2.75" Conflat Flange
A0756-2-CF
MULTIPIN, 4 PIN, 700V, 15A, 275CF
MS High Current Series, Multipin Feedthrough, 4 Pins, 700 Volts, 15 Amps per Pin, 0.094" Nickel Conductors, 2.75" Conflat Flange
A2568-5-CF
MULTIPIN, 4 PIN, 700V, 16A, 133CF
MS High Current Series, Multipin Feedthrough, 4 Pins, 700 Volts, 16 Amps per Pin, 0.094" Nickel Conductors, 1.33" Conflat Flange

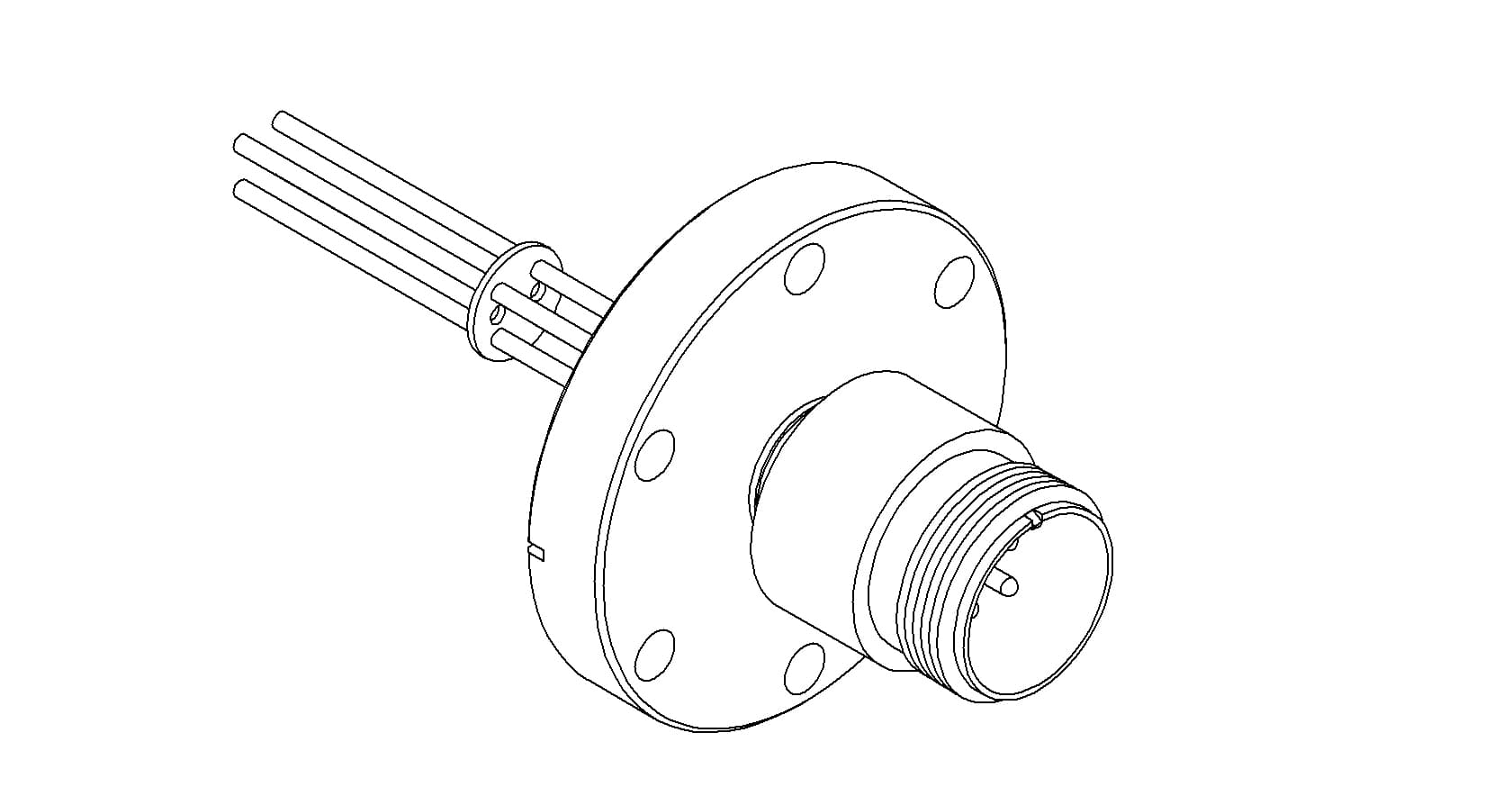

A2569-5-CF
MULTIPIN, 4 PIN, 700V, 16A, 275CF
MS High Current Series, Multipin Feedthrough, 4 Pins, 700 Volts, 16 Amps per Pin, 0.094" Nickel Conductors, 2.75" Conflat Flange

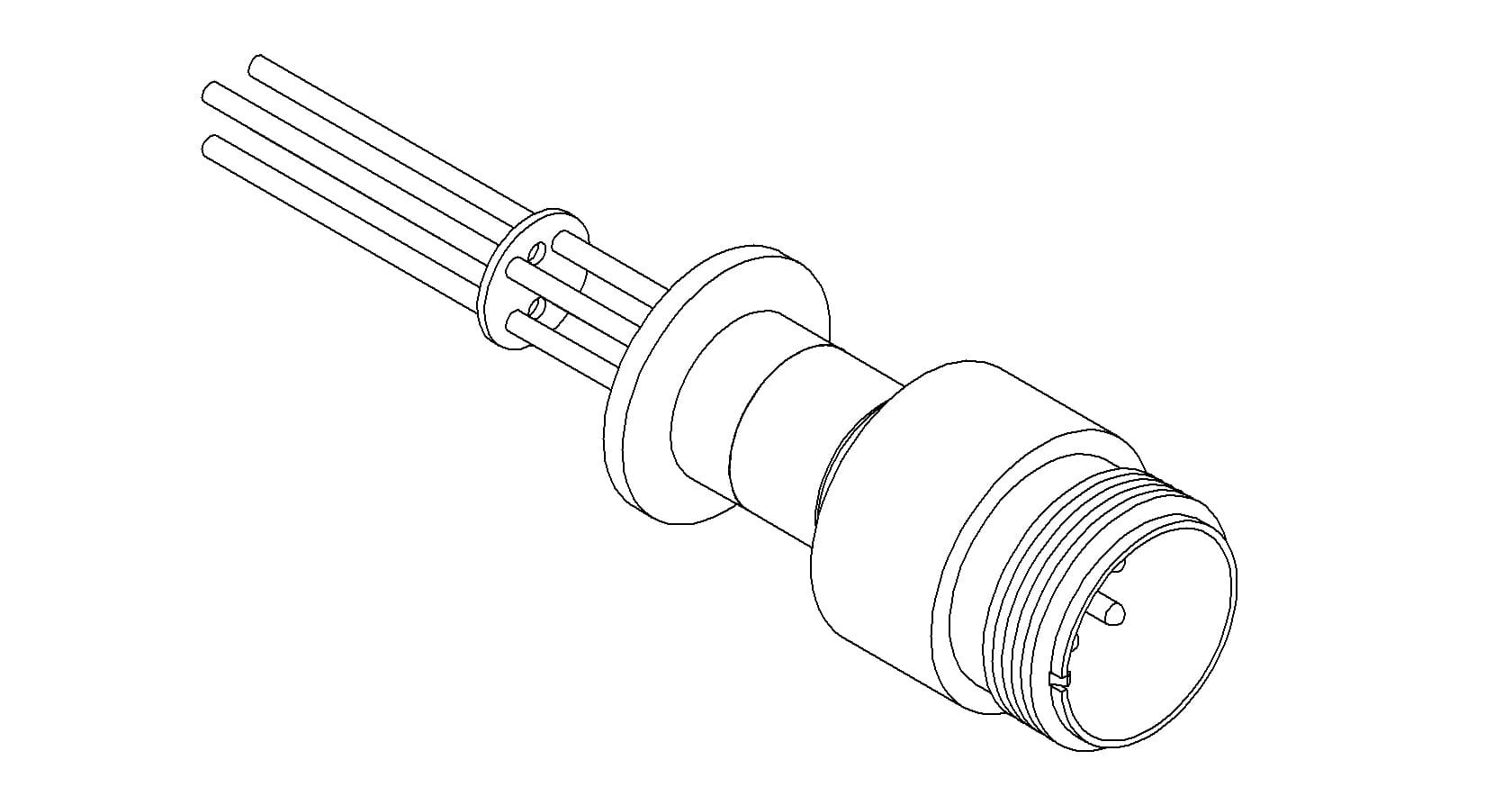

A2567-5-QF
MULTIPIN, 4 PIN, 700V, 16A, QF16
MS High Current Series, Multipin Feedthrough, 4 Pins, 700 Volts, 16 Amps per Pin, 0.094" Nickel Conductors, 1.18" Quick Flange
A3991-5-QF
MULTIPIN, 4 PIN, 700V, 16A, QF25
MS High Current Series, Multipin Feedthrough, 4 Pins, 700 Volts, 16 Amps per Pin, 0.094" Nickel Conductors, 1.57" Quick Flange
A3992-5-QF
MULTIPIN, 4 PIN, 700V, 16A, QF40
MS High Current Series, Multipin Feedthrough, 4 Pins, 700 Volts, 16 Amps per Pin, 0.094" Nickel Conductors, 2.16" Quick Flange
A2566-5-W
MULTIPIN, 4 PIN, 700V, 16A, WELD
MS High Current Series, Multipin Feedthrough, 4 Pins, 700 Volts, 16 Amps per Pin, 0.094" Nickel Conductors, 0.75" Dia Stainless Steel Weld Adapter
A0756-1-CF
MULTIPIN, 4 PIN, 700V, 23A, 275CF
MS High Current Series, Multipin Feedthrough, 4 Pins, 700 Volts, 23 Amps per Pin, 0.094" Copper Conductors, 2.75" Conflat Flange

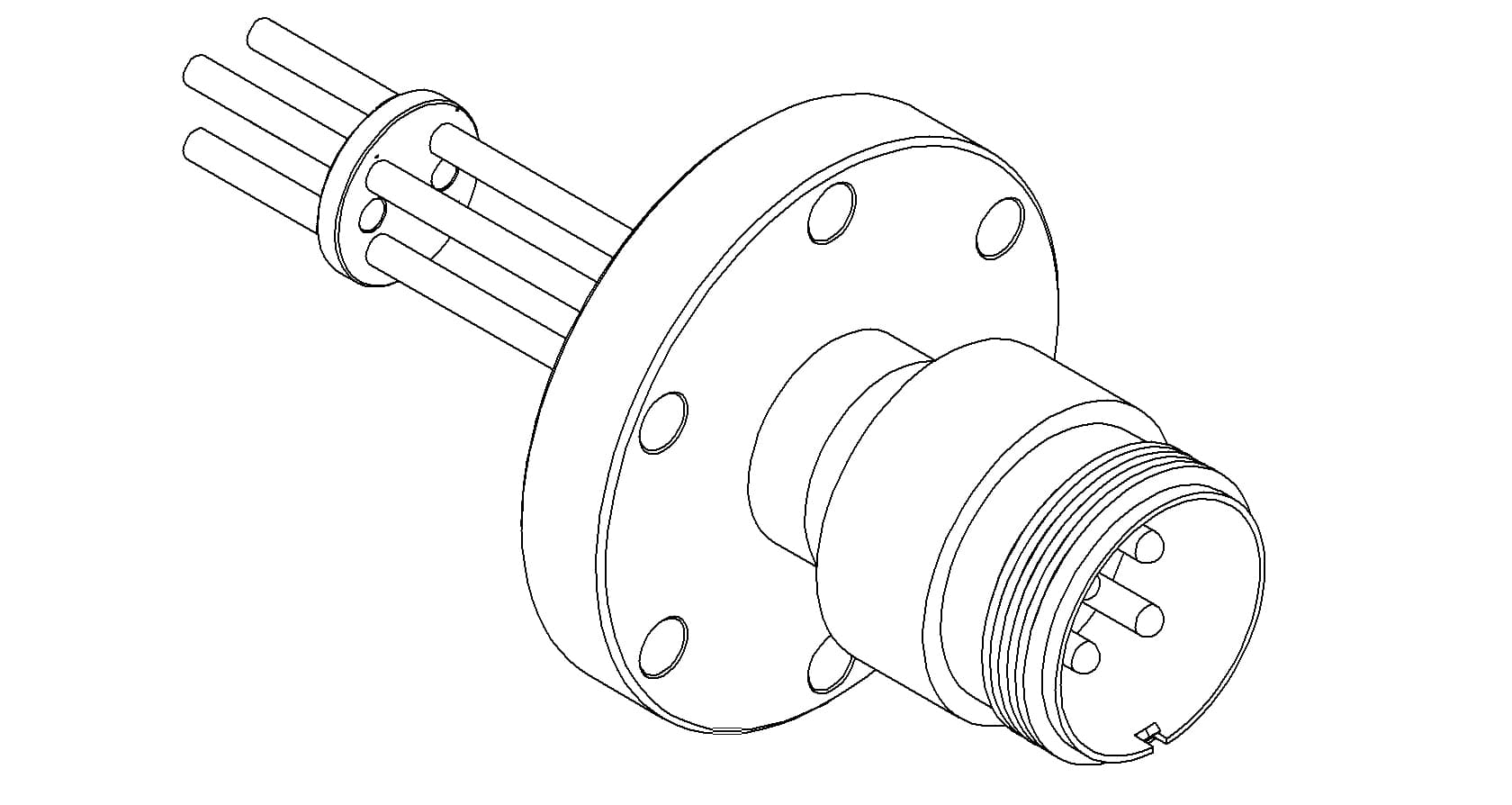

A4852-3-CF
MULTIPIN, 4 PIN, 700V, 25A, 275CF
MS High Current Series, Multipin Feedthrough, 4 Pins, 700 Volts, 25 Amps per Pin, 0.142" Nickel Conductors, 2.75" Conflat Flange

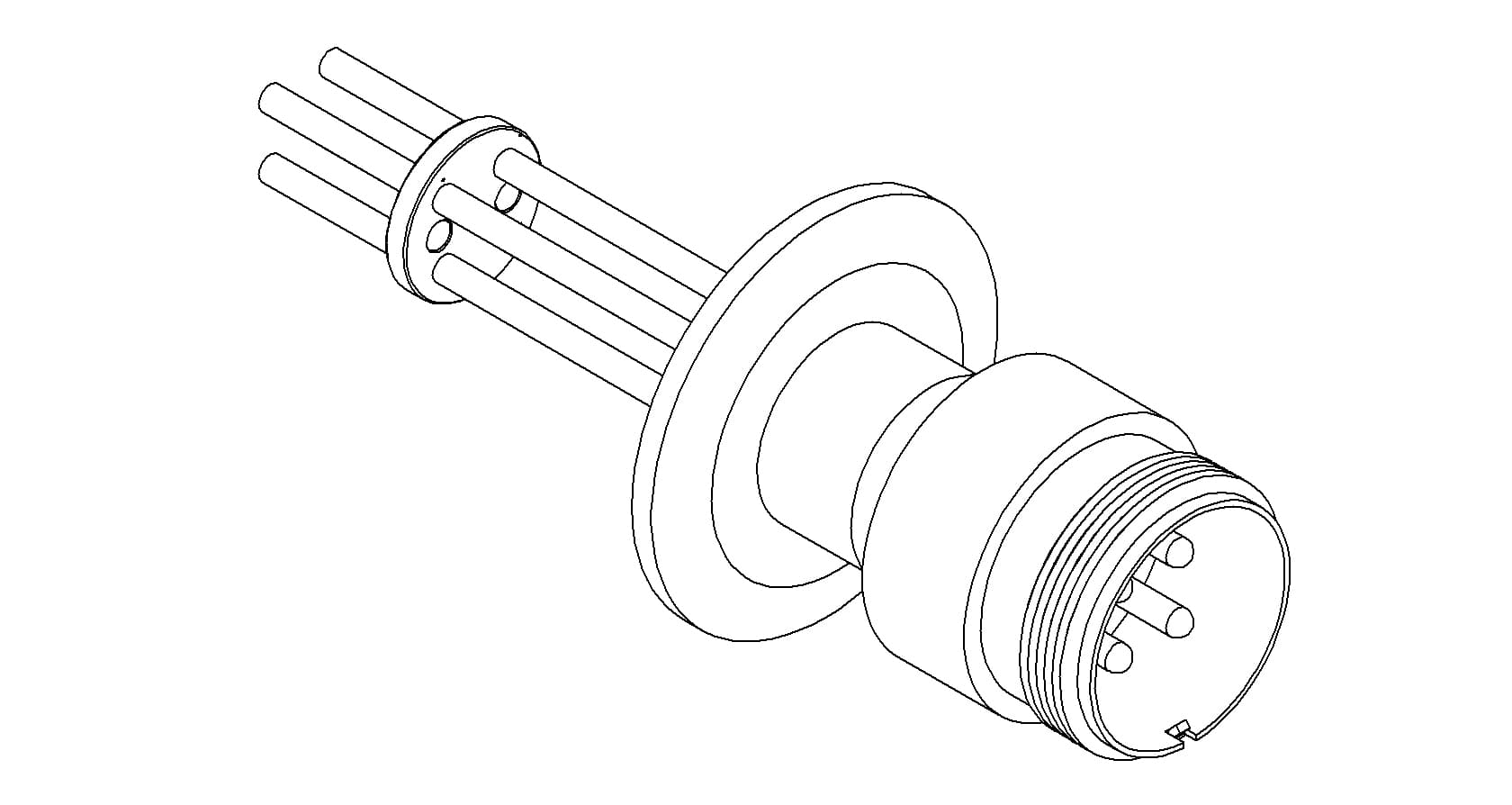

A5079-3-QF
MULTIPIN, 4 PIN, 700V, 25A, QF40
MS High Current Series, Multipin Feedthrough, 4 Pins, 700 Volts, 25 Amps per Pin, 0.142" Nickel Conductors, 2.16" Quick Flange
A4748-3-W
MULTIPIN, 4 PIN, 700V, 25A, WELD
MS High Current Series, Multipin Feedthrough, 4 Pins, 700 Volts, 25 Amps per Pin, 0.142" Nickel Conductors, 1.00" Dia Stainless Steel Weld Adapter
A2568-7-CF
MULTIPIN, 4 PIN, 700V, 28A, 133CF
MS High Current Series, Multipin Feedthrough, 4 Pins, 700 Volts, 28 Amps per Pin, 0.094" Moly Conductors, 1.33" Conflat Flange
A2569-7-CF
MULTIPIN, 4 PIN, 700V, 28A, 275CF
MS High Current Series, Multipin Feedthrough, 4 Pins, 700 Volts, 28 Amps per Pin, 0.094" Moly Conductors, 2.75" Conflat Flange

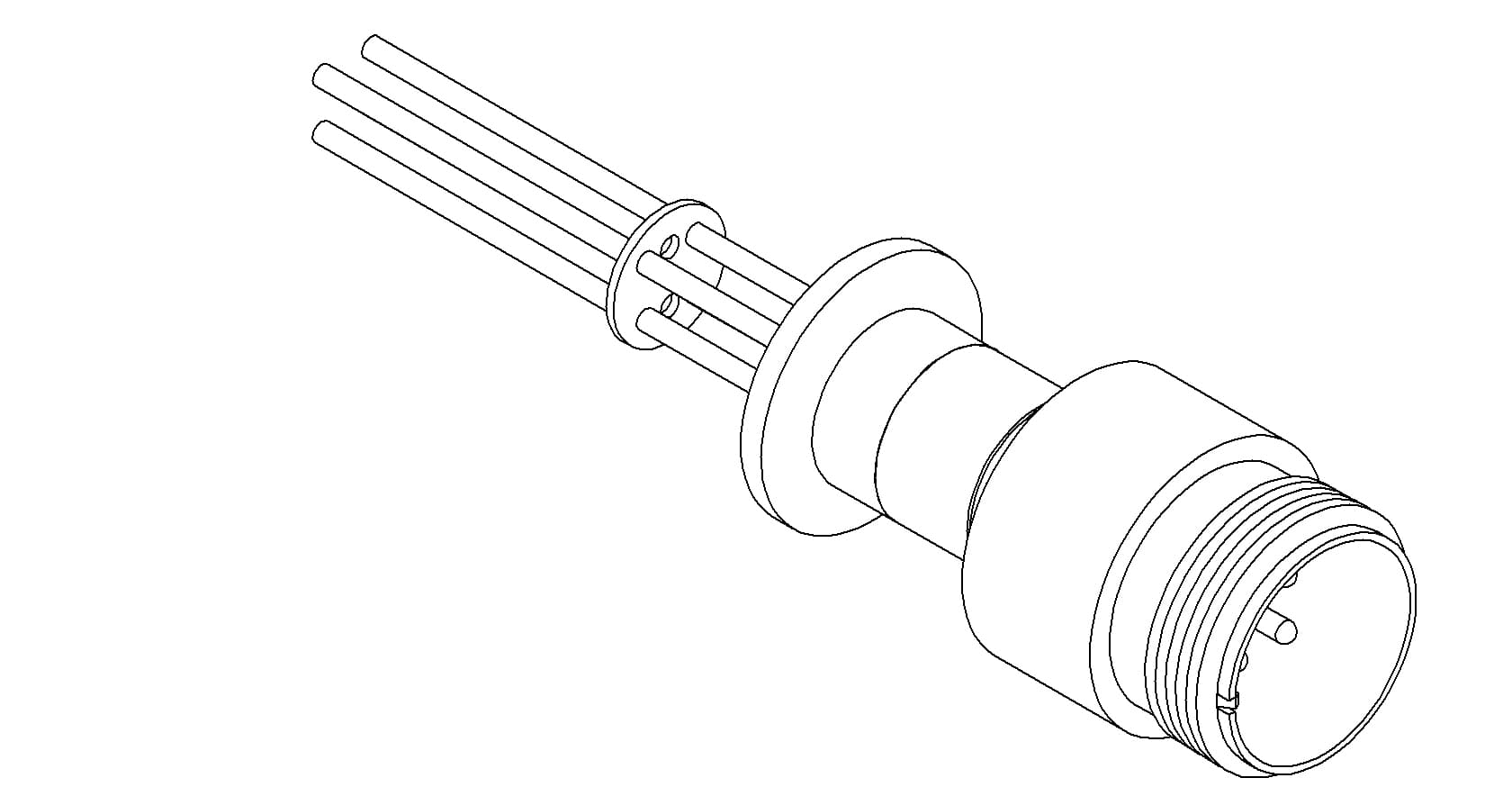

A2567-7-QF
MULTIPIN, 4 PIN, 700V, 28A, QF16
MS High Current Series, Multipin Feedthrough, 4 Pins, 700 Volts, 28 Amps per Pin, 0.094" Moly Conductors, 1.18" Quick Flange
A3991-7-QF
MULTIPIN, 4 PIN, 700V, 28A, QF25
MS High Current Series, Multipin Feedthrough, 4 Pins, 700 Volts, 28 Amps per Pin, 0.094" Moly Conductors, 1.57" Quick Flange

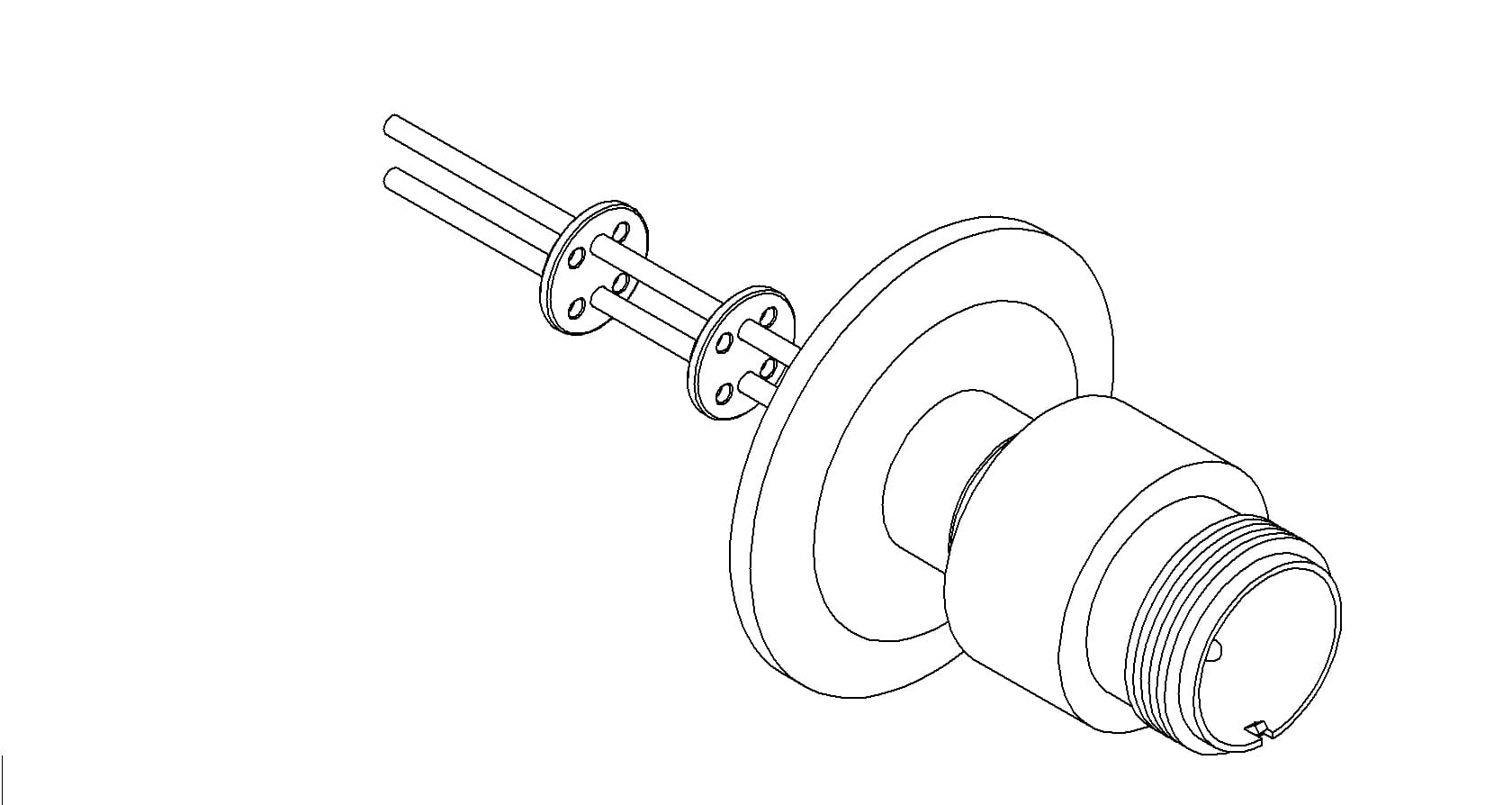

A3992-7-QF
MULTIPIN, 4 PIN, 700V, 28A, QF40
MS High Current Series, Multipin Feedthrough, 4 Pins, 700 Volts, 28 Amps per Pin, 0.094" Moly Conductors, 2.16" Quick Flange

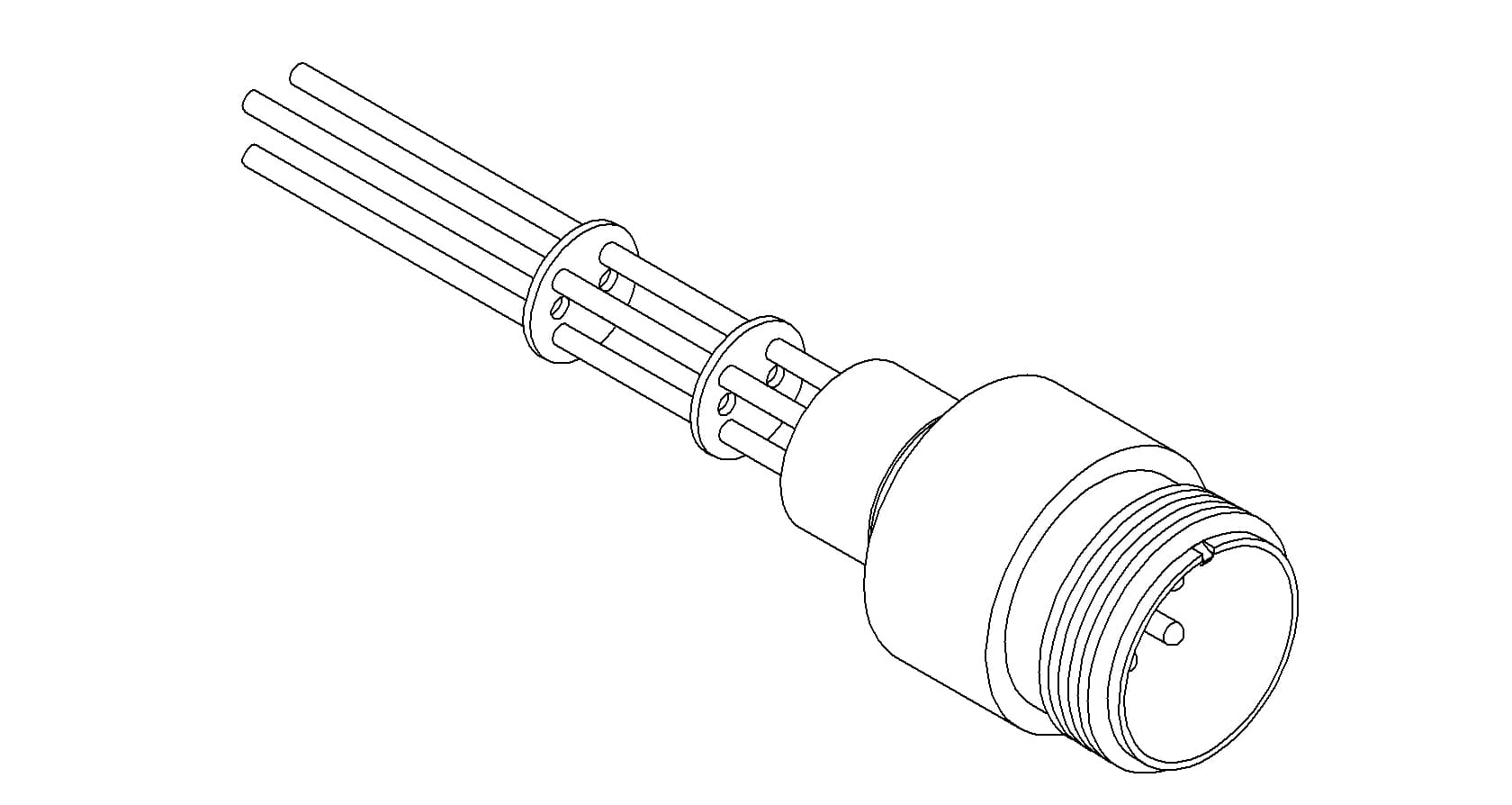

A2566-7-W
MULTIPIN, 4 PIN, 700V, 28A, WELD
MS High Current Series, Multipin Feedthrough, 4 Pins, 700 Volts, 28 Amps per Pin, 0.094" Moly Conductors, 0.75" Dia Stainless Steel Weld Adapter

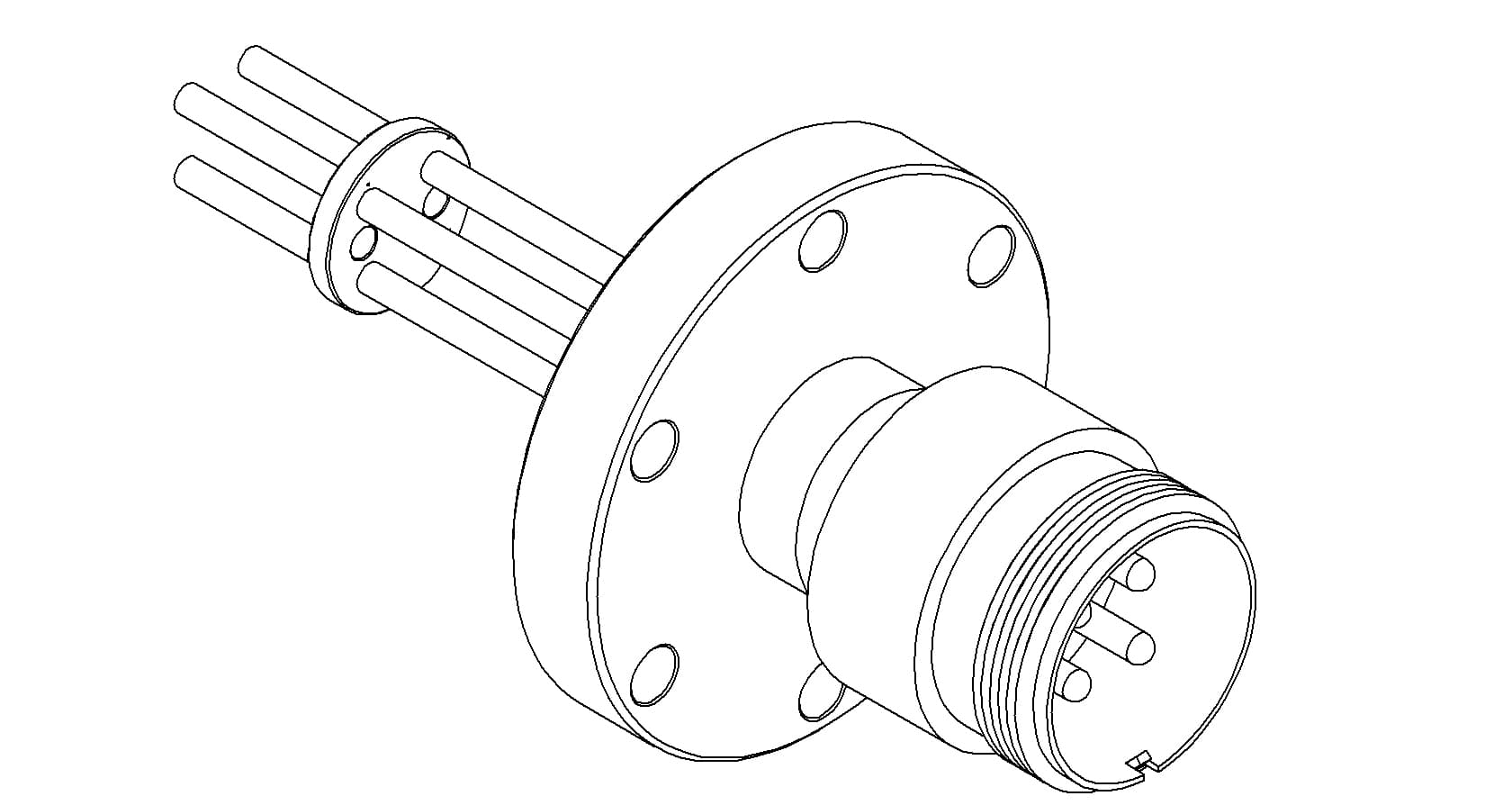

A4852-1-CF
MULTIPIN, 4 PIN, 700V, 40A, 275CF
MS High Current Series, Multipin Feedthrough, 4 Pins, 700 Volts, 40 Amps per Pin, 0.142" Moly Conductors, 2.75" Conflat Flange

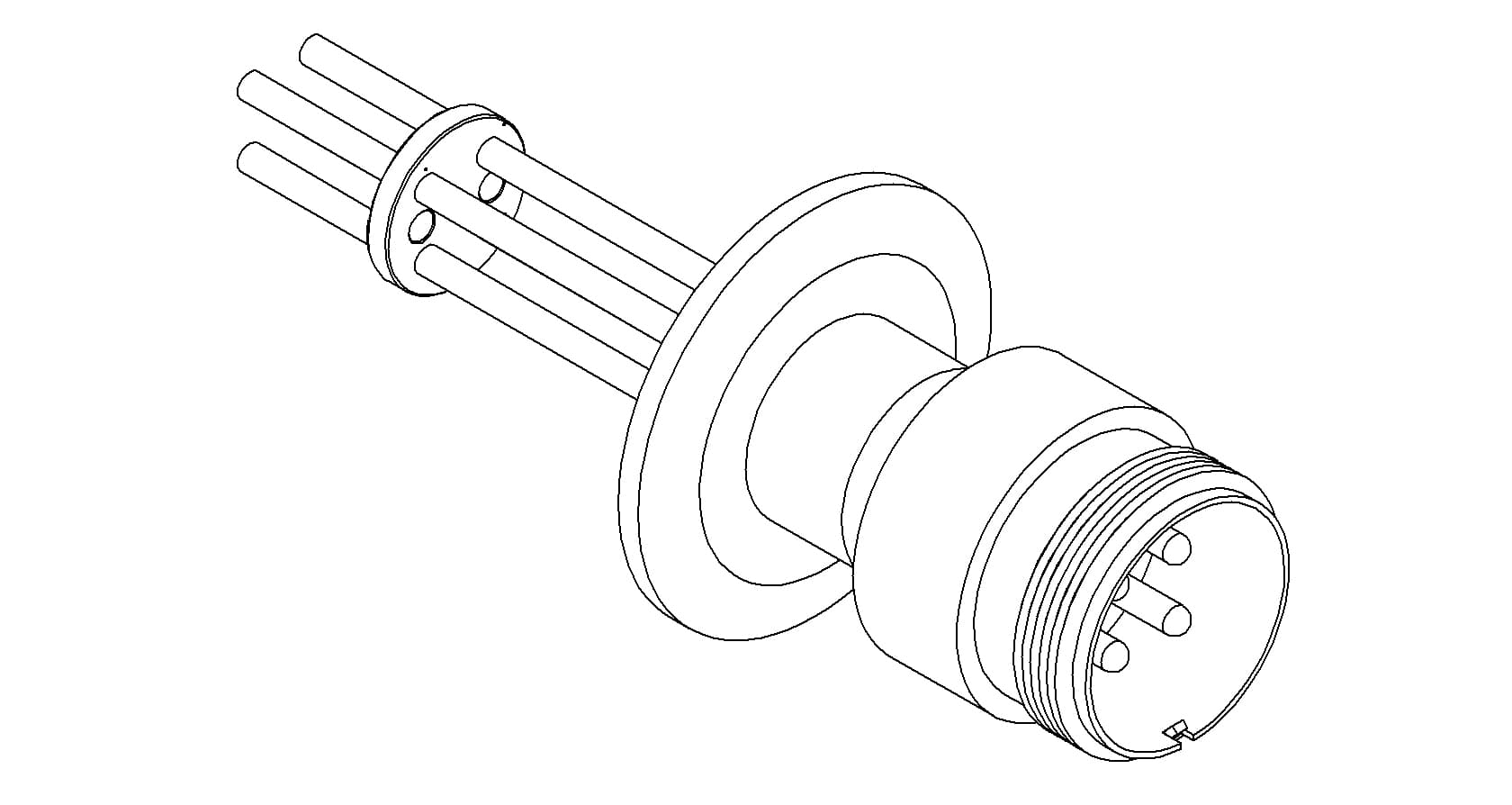

A5079-1-QF
MULTIPIN, 4 PIN, 700V, 40A, QF40
MS High Current Series, Multipin Feedthrough, 4 Pins, 700 Volts, 40 Amps per Pin, 0.142" Moly Conductors, 2.16" Quick Flange

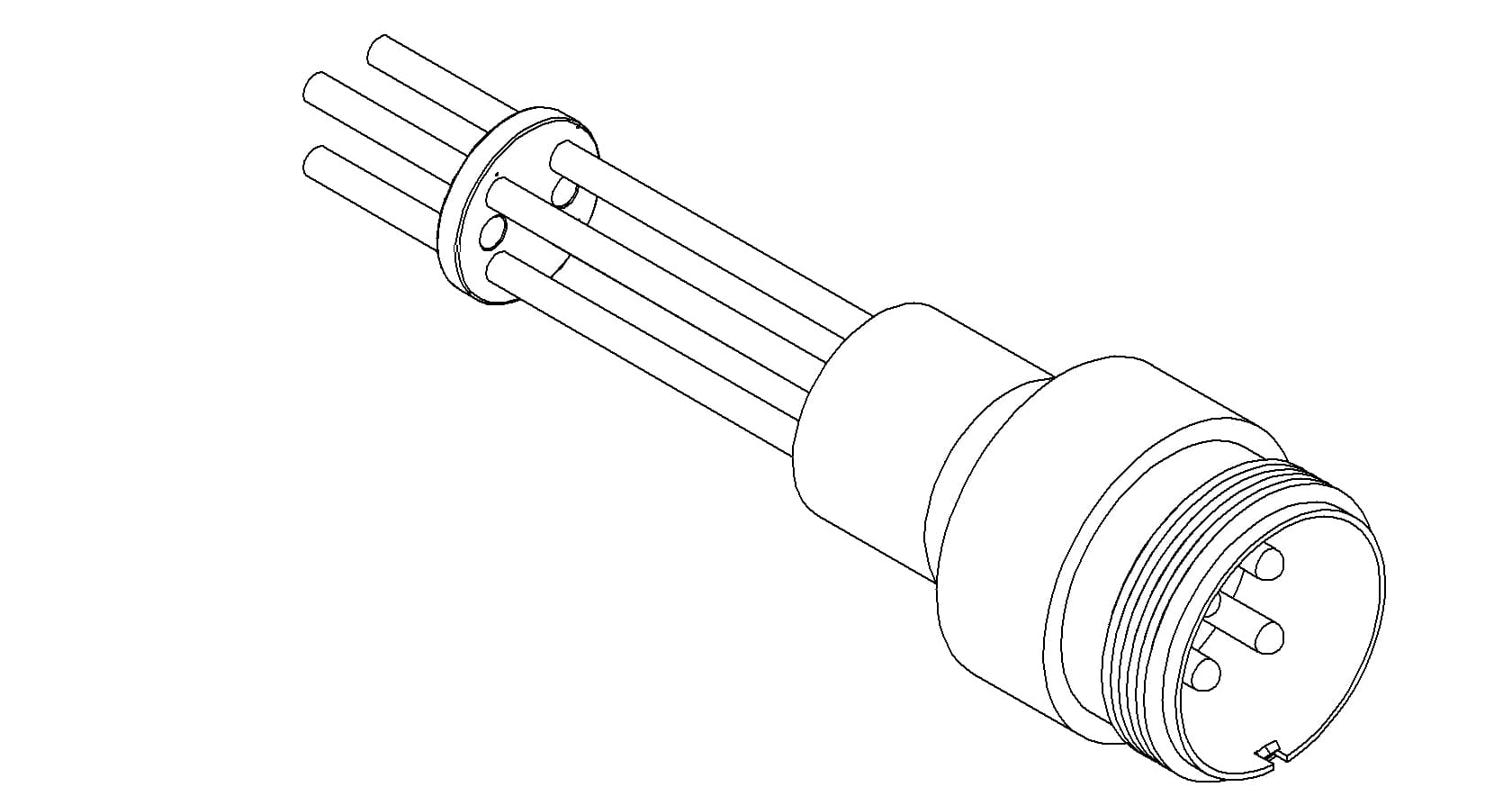

A4748-1-W
MULTIPIN, 4 PIN, 700V, 40A, WELD
MS High Current Series, Multipin Feedthrough, 4 Pins, 700 Volts, 40 Amps per Pin, 0.142" Moly Conductors, 1.00" Dia Stainless Steel Weld Adapter
A14856-1-CF
MULTIPIN, 4 PIN, 700V, DOUBLE ENDED, 275CF
MS High Current Series, Double Ended, Multipin Feedthrough, 4 Pins, 700 Volts, 28 Amps per Pin, 0.94" Moly Conductors, 2.75" Conflat Flange
A14856-3-CF
MULTIPIN, 4 PIN, 700V, DOUBLE ENDED, 275CF
MS High Current Series, Double Ended, Multipin Feedthrough, 4 Pins, 700 Volts, 16 Amps per Pin, 0.94" Nickel Conductors, 2.75" Conflat Flange

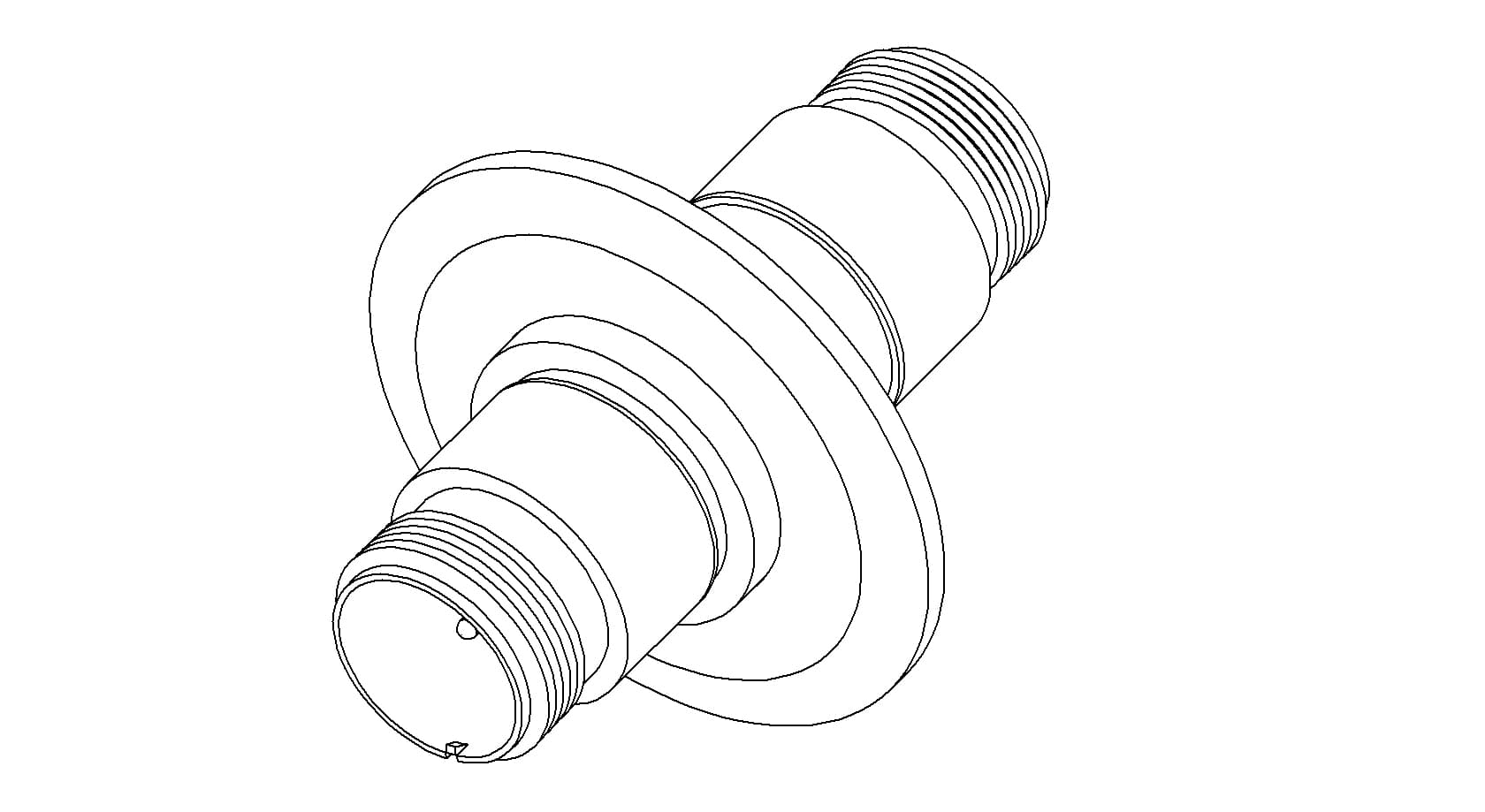

A14857-1-QF
MULTIPIN, 4 PIN, 700V, DOUBLE ENDED, 295QF
MS High Current Series, Double Ended, Multipin Feedthrough, 4 Pins, 700 Volts, 28 Amps per Pin, 0.94" Moly Conductors, 2.95" Quick Flange
A14857-3-QF
MULTIPIN, 4 PIN, 700V, DOUBLE ENDED, 295QF
MS High Current Series, Double Ended, Multipin Feedthrough, 4 Pins, 700 Volts, 16 Amps per Pin, 0.94" Nickel Conductors, 2.95" Quick Flange

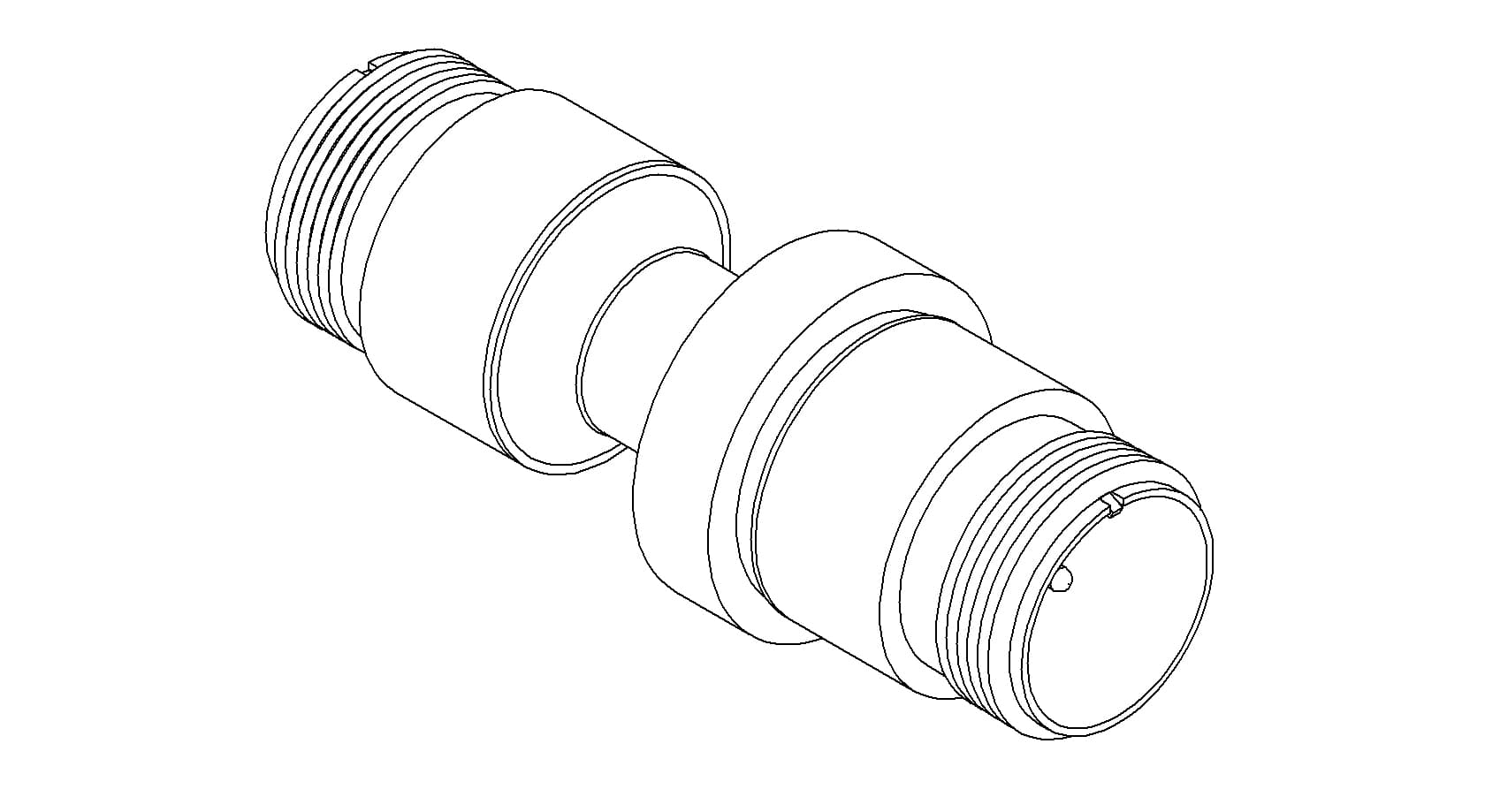

A15661-1-W
MULTIPIN, 4 PIN, 700V, DOUBLE ENDED, WELD
MS High Current Series, Double Ended, Multipin Feedthrough, 4 Pins, 700 Volts, 28 Amps per Pin, 0.94" Moly Conductors, 1.50" Stainless Steel Weld Adapter
A15661-3-W
MULTIPIN, 4 PIN, 700V, DOUBLE ENDED, WELD
MS High Current Series, Double Ended, Multipin Feedthrough, 4 Pins, 700 Volts, 16 Amps per Pin, 0.94" Nickel Conductors, 1.50" Stainless Steel Weld Adapter
A0755-2-CF
MULTIPIN, 5 PIN, 700V, 15A, 275CF
MS High Current Series, Multipin Feedthrough, 5 Pins, 700 Volts, 15 Amps per Pin, 0.094" Nickel Conductors, 2.75" Conflat Flange
A0755-1-CF
MULTIPIN, 5 PIN, 700V, 23A, 275CF
MS High Current Series, Multipin Feedthrough, 5 Pins, 700 Volts, 23 Amps per Pin, 0.094" Copper Conductors, 2.75" Conflat Flange

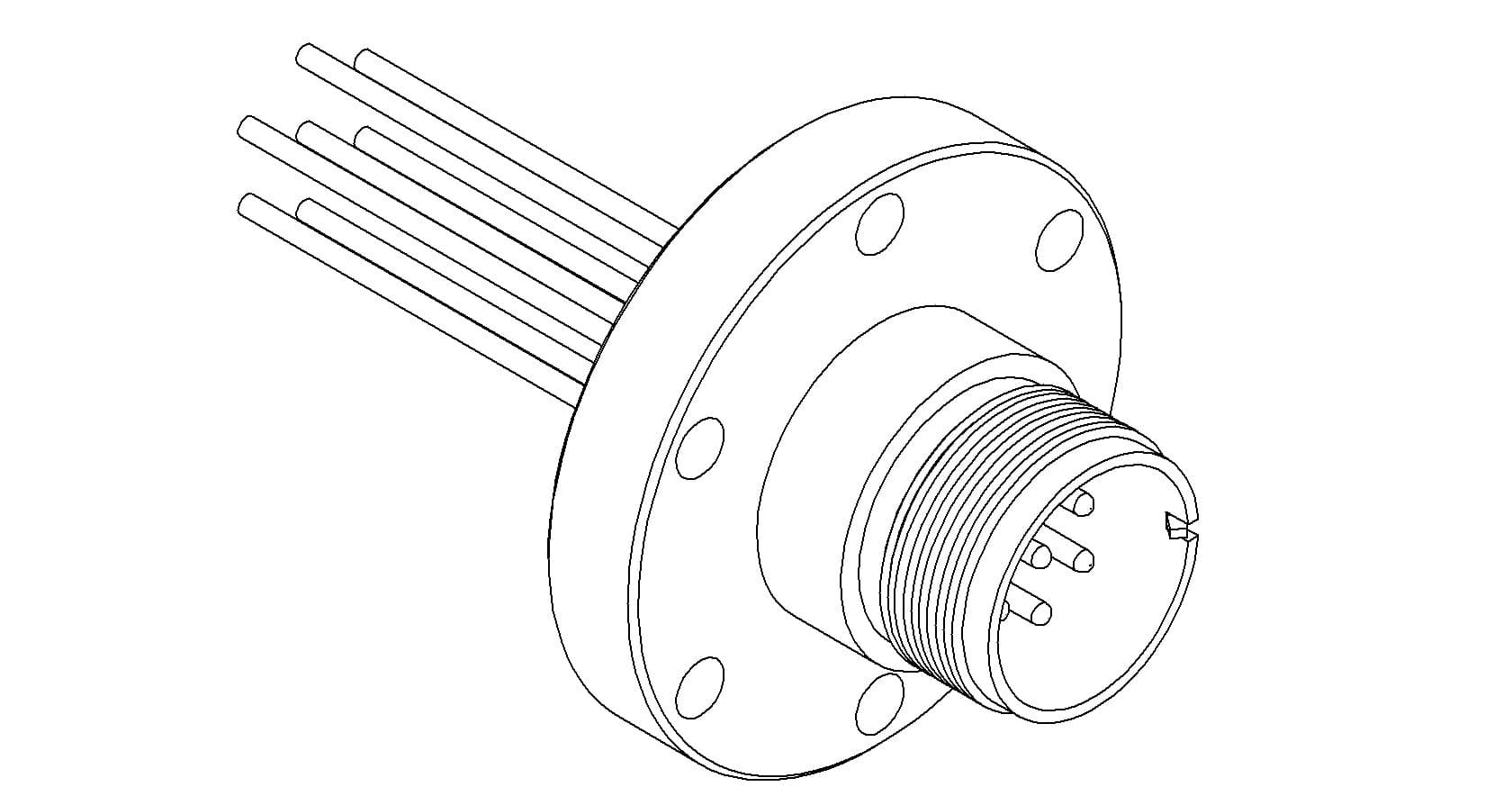

A0752-2-CF
MULTIPIN, 7 PIN, 700V, 15A, 275CF
MS High Current Series, Multipin Feedthrough, 7 Pins, 700 Volts, 15 Amps per Pin, 0.094" Nickel Conductors, 2.75" Conflat Flange
A0752-1-CF
MULTIPIN, 7 PIN, 700V, 23A, 275CF
MS High Current Series, Multipin Feedthrough, 7 Pins, 700 Volts, 23 Amps per Pin, 0.094" Copper Conductors, 2.75" Conflat Flange
A0757-2-CF
MULTIPIN, 8 PIN, 700V, 15A, 275CF
MS High Current Series, Multipin Feedthrough, 8 Pins, 700 Volts, 15 Amps per Pin, 0.094" Nickel Conductors, 2.75" Conflat Flange
A0757-1-CF
MULTIPIN, 8 PIN, 700V, 23A, 275CF
MS High Current Series, Multipin Feedthrough, 8 Pins, 700 Volts, 23 Amps per Pin, 0.094" Copper Conductors, 2.75" Conflat Flange
