High Power Baseplate
총 10개 제품
상위 분류: Power

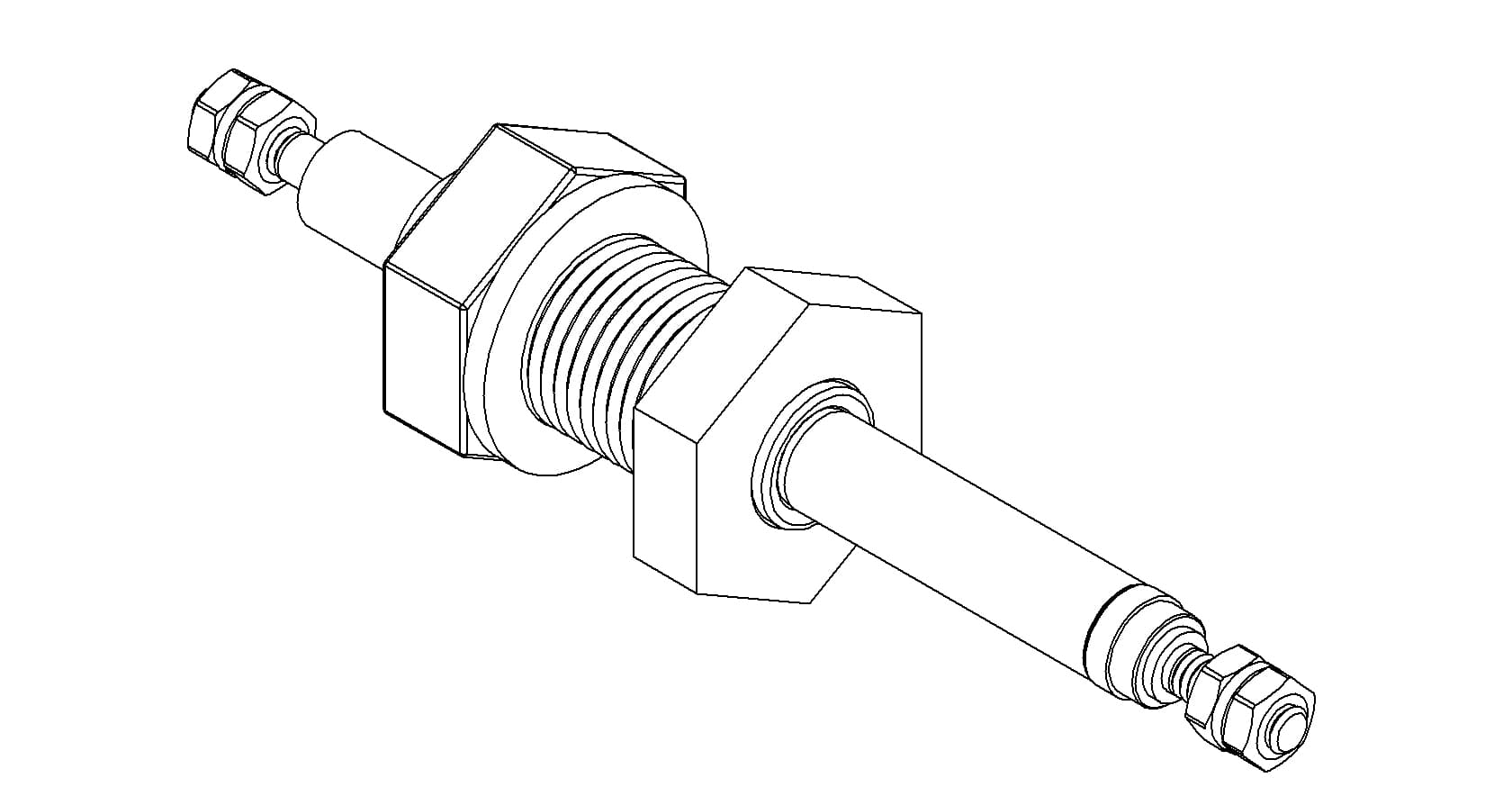

A0544-1-BP
POWER, 12KV, 150A, 1PIN, COPPER, BASEPLATE
Power Feedthrough, 12,000 Volts, 150 Amps, 1 Pin, Copper Conductor with 1/4-20 Threads, 1.0" Baseplate Bolt
A0545-1-BP
POWER, 12KV, 150A, 1PIN, COPPER, SHIELD, BASEPLATE
Power Feedthrough, 12,000 Volts, 150 Amps, 1 Pin, Copper Conductor with 1/4-20 Threads, Vacuum-side Deposition Shield, 1.0" Baseplate Bolt
A0544-2-BP
POWER, 12KV, 75A, 1PIN, NICKEL, BASEPLATE
Power Feedthrough, 12,000 Volts, 75 Amps, 1 Pin, Nickel Conductor with 1/4-20 Threads, 1.0" Baseplate Bolt
A0545-2-BP
POWER, 12KV, 75A, 1PIN, NICKEL, SHIELD, BASEPLATE
Power Feedthrough, 12,000 Volts, 75 Amps, 1 Pin, Nickel Conductor with 1/4-20 Threads, Vacuum-side Deposition Shield, 1.0" Baseplate Bolt
A0544-3-BP
POWER, 12KV, 7A, 1PIN, STAINLESS STEEL, BASEPLATE
Power Feedthrough, 12,000 Volts, 7 Amps, 1 Pin, Stainless Steel Conductor with 1/4-20 Threads, 1.0" Baseplate Bolt

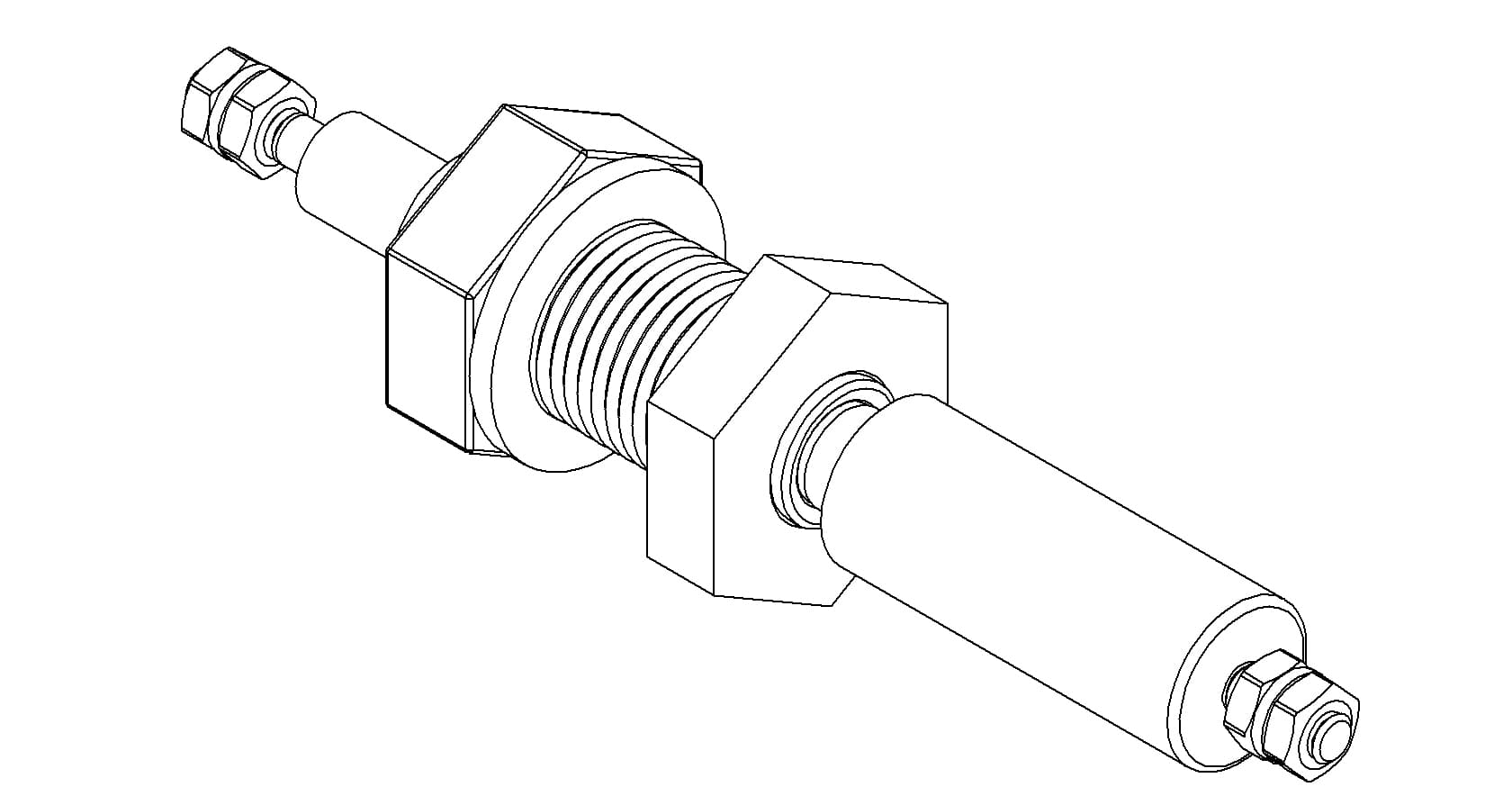

A0545-3-BP
POWER, 12KV, 7A, 1PIN, STAINLESS STEEL, SHIELD, BASEPLATE
Power Feedthrough, 12,000 Volts, 7 Amps, 1 Pin, Stainless Steel Conductor with 1/4-20 Threads, Vacuum-side Deposition Shield, 1.0" Baseplate Bolt
A0542-1-BP
POWER, 3KV, 250A, 1PIN, COPPER, BASEPLATE
Power Feedthrough, 3000 Volts, 250 Amps, 1 Pin, Copper Conductor with 3/8-16 Threads, 1.0" Baseplate Bolt
A0543-1-BP
POWER, 5KV, 180A, 1PIN, COPPER, BASEPLATE
Power Feedthrough, 5000 Volts, 180 Amps, 1 Pin, 0.25" Copper Conductor, 1.0" Baseplate Bolt

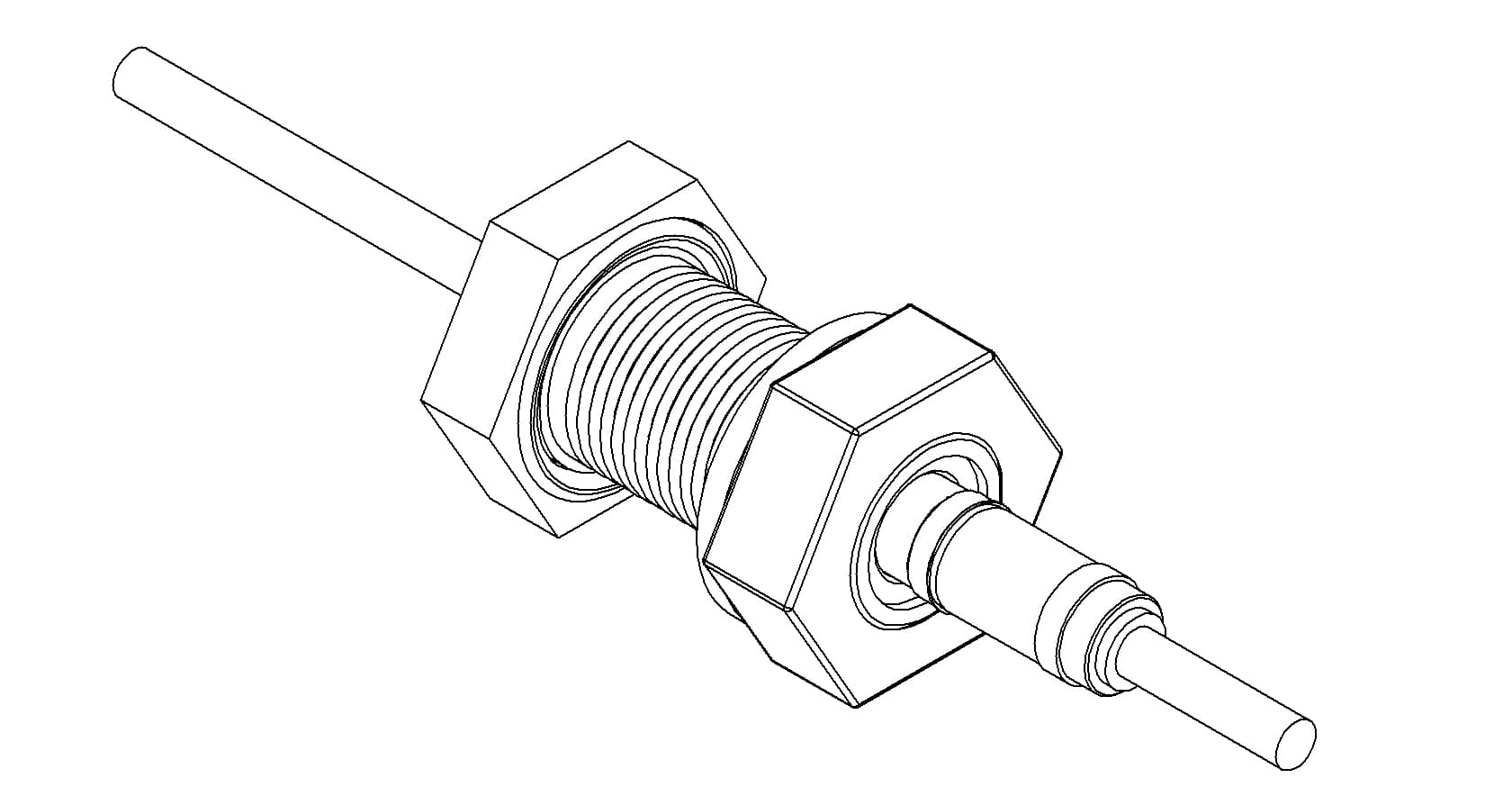

A0543-2-BP
POWER, 5KV, 55A, 1PIN, NICKEL, BASEPLATE
Power Feedthrough, 5000 Volts, 55 Amps, 1 Pin, 0.25" Nickel Conductor, 1.0" Baseplate Bolt
A0543-3-BP
POWER, 5KV, 7A, 1PIN, STAINLESS STEEL, BASEPLATE
Power Feedthrough, 5000 Volts, 7 Amps, 1 Pin, 0.25" Stainless Steel Conductor, 1.0" Baseplate Bolt
