Rack / Panel Mount Vacuum Gauge Controllers
총 4개 제품
상위 분류: InstruTech
AGC302

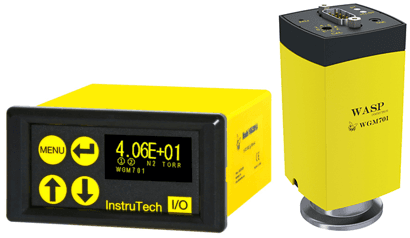

AGC302 & WGM701 Wide Range Gauge
The AGC302 vacuum gauge controller is a power supply and readout instrument offered specifically for the InstruTech active vacuum gauge series WGM701 pirani-cold cathode combination gauge, CCM502 cold cathode gauge, PCM301 pirani-capacitance combination gauge, CDM900 capacitance diaphragm gauge (CDG) and other brands of CDGs. Note that the vacuum gauges listed above do not necessarily require the AGC302 to operate. These gauges provide analog output signals that can be directly interfaced with user's control system. As such, AGC302 is recommended only when a bench top, panel or rack mount display installation is required.

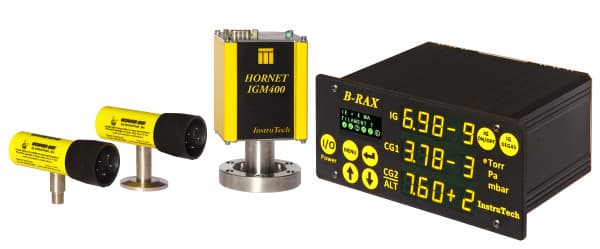

B-RAX™ 3000 Series
B-RAX™ 3000 Series
The B-RAX 3000 series are InstruTech's new generation of three channel vacuum gauge controllers capable of operating one ionization gauge (IG) and two convection enhanced pirani gauges (CG), or one IG, one CG and one capacitance diaphragm gauge (CDG). Standard features include three analog outputs, six setpoint relays, remote Digital I/O, RS232 and RS485 communications.
FlexRax® 4000
FlexRax® 4000
The FlexRax 4000 is a versatile vacuum gauge controller capable of operating up to 10 different vacuum gauges simultaneously. It can operate up to 2 classic size Bayard-Alpert glass or nude ionization gauges - BA600 Series, up to 2 InstruTech IGM400 hot cathode or CCM500 cold cathode ionization gauge modules and up to 4 InstruTech CVG101 Worker Bee or Granville-Phillips® Convectron® convection vacuum gauge sensors. Additionally it can display measurements from two capacitance diaphragm gauges.
VGC301

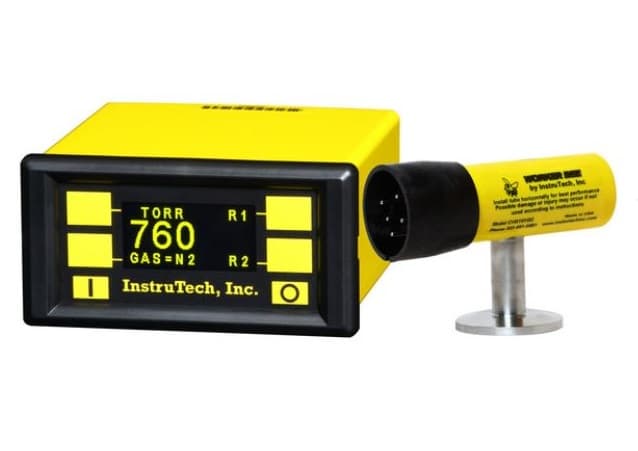

VGC301™ Vacuum Gauge Controller
The VGC301 vacuum gauge controller is a single channel Space-saving 1/8-DIN rack / panel mount power supply and readout instrument for the InstruTech CVG101 Worker Bee convection gauge sensor.
