VIEWPORTS, DOORS, SHUTTERS & ADAPTERS
하위 카테고리
세부 카테고리로 이동하여 더 전문화된 제품을 확인하세요.
이미지 없음
VAC-U-FLANGE® Viewports (CF)
이미지 없음
Viewport Weld Stubs
이미지 없음
Viewport Shutters
이미지 없음
Access Doors for Load Locks & Chambers
이미지 없음
Glass Adapters, Open Tube End
이미지 없음
Glass Adapters, Domed End
이미지 없음
Glass Adapter, Double Ends (Break)
이미지 없음
Ceramic Adapters (Vacuum Break)
총 8개 제품
상위 분류: Huntington
VAC-U-FLANGE® Viewports (CF)
GLASS, SAPPHIRE, SILICA VIEWPORTSULTRA-HIGH VACUUM VIEWPORTS

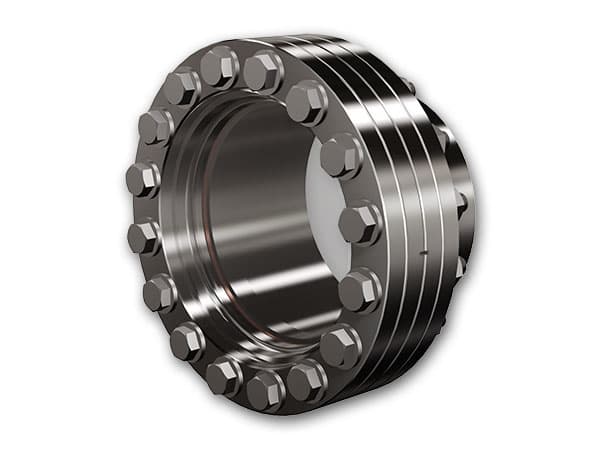

Viewport Weld Stubs
"Commonly used to add a viewport to an existing chamber, Huntington Weld Stubs are comprised of a full kit including the weldable Nipple, Viewport, Gasket and necessary Hardware.Please note: Items NOT pre-assembled to ease the welding process."GLASS & SILICA VIEWPORT WELD STUBSADD VIEWPORT TO CHAMBERS

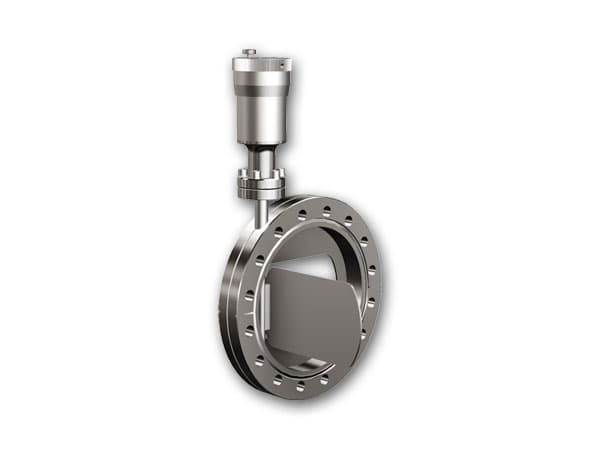

Viewport Shutters
Huntington Bellows Sealed Viewport Shutters are manually operated rotary shutter assemblies incorporated into a double sided VAC-U-FLANGE® flange. Viewport Shutters are critical to preserving the light transmission capabilities of viewports especially in vacuum coating applications where material can become deposited on the optical substrate. The Shutter can be locked in a closed position to prevent the buildup of material on the viewport glass, then opened for viewing after the process. It can also be locked in any open position in it’s swing of travel. Protect your investment in expensive or hard-to-replace viewports with Huntington Viewport Shutters.VIEWPORT ADJUSTABLE SHUTTERSPROTECT VALUABLE VIEWPORTS

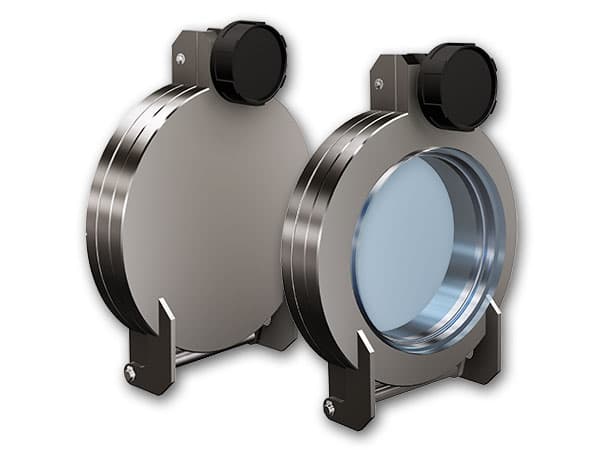

Access Doors for Load Locks & Chambers
The flange to which the door is hinged mates with an identical flange on the chamber or load lock. A captured Viton® O-ring in the face of the door provides the door seal when it is closed and locked.VIEW & SOLID DOORACCESS DOORSEASY ACCESS TO CHAMBERS

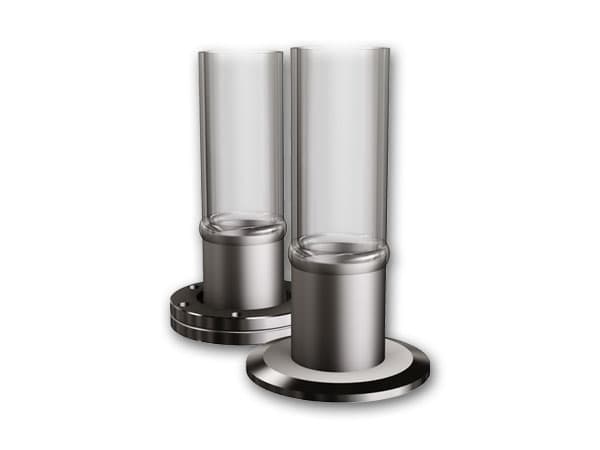

Glass Adapters, Open Tube End
OPEN END STYLE GLASS ADAPTERGLASS to FLANGE (OPEN)

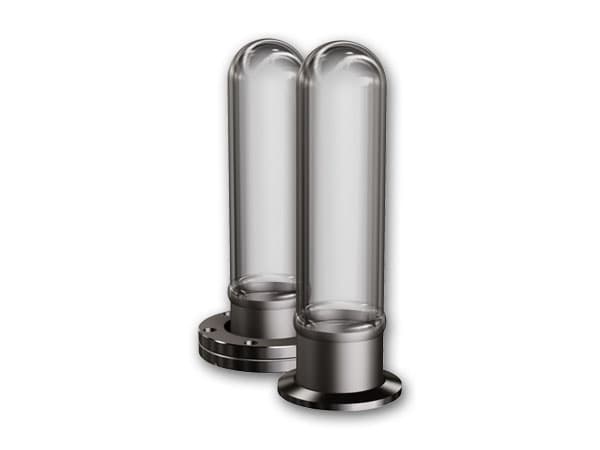

Glass Adapters, Domed End
DOMED GLASS STYLE GLASS ADAPTERGLASS to FLANGE (DOMED

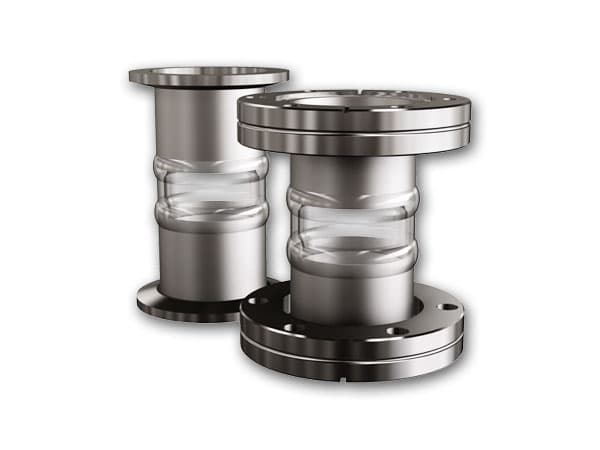

Glass Adapter, Double Ends (Break)
DOUBLE END GLASS BREAKSGLASS to FLANGE for VIEWING

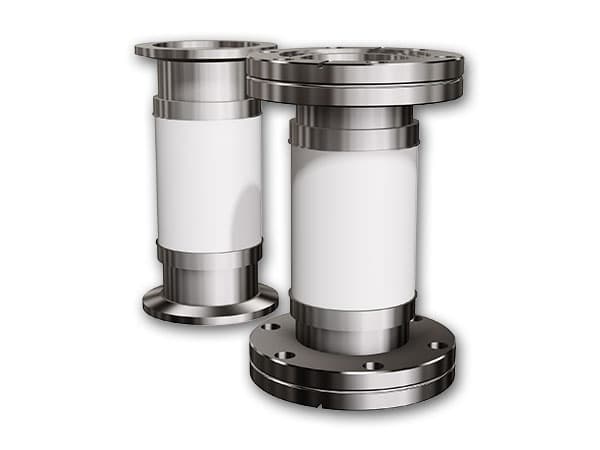

Ceramic Adapters (Vacuum Break)
"Ceramic to Metal Adapters (Vacuum Breaks and Envelopes)Huntington’s Ceramic-to-Metal adapters allow for high-voltage insulation for flange to flange connections in applications requiring high and ultra high vacuum insulated mounting. Pressure range is 1 x 10-9 Torr-L/sec. He. with bakeout temperatures of 400°C for VAC-U-FLANGE® models and 200°C for SPEED SYSTEM models. The ceramic material is 90% Aluminum oxide joined to a Kovar® sleeve, which is then joined to the stainless steel flange using industry standard ultra high vacuum brazing techniques."INSULATED CERAMIC BREAKSFOR ELECTRICAL NON-CONDUCTANCE
