Front Load Single Sensor
Front Load Single Sensor
제품 특징

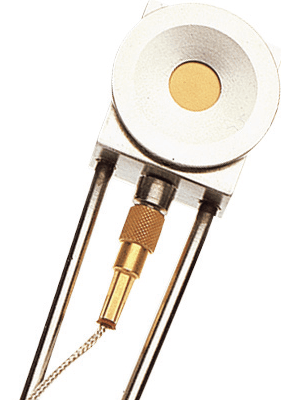

- INFICON Front Load Single crystal sensors offer proven reliability and durability and have the best thermal stability of any sensor head on the market. The front load design allows for easy insertion of the crystal holder in applications lacking sufficient room for side insertion. Assembled mechanically rather than soldered, parts can be replaced conveniently in the field, if necessary. Sensors can be ordered individually or in a sensor / feedthrough combination that can be either welded or assembled with compression fittings.
제품 상세 정보
| 항목 | 값 |
|---|---|
| connector | No |
| managed | No |
| overview order | 1 |
| product order | 1 |
| product spec | Type : Front Load Single Sensor

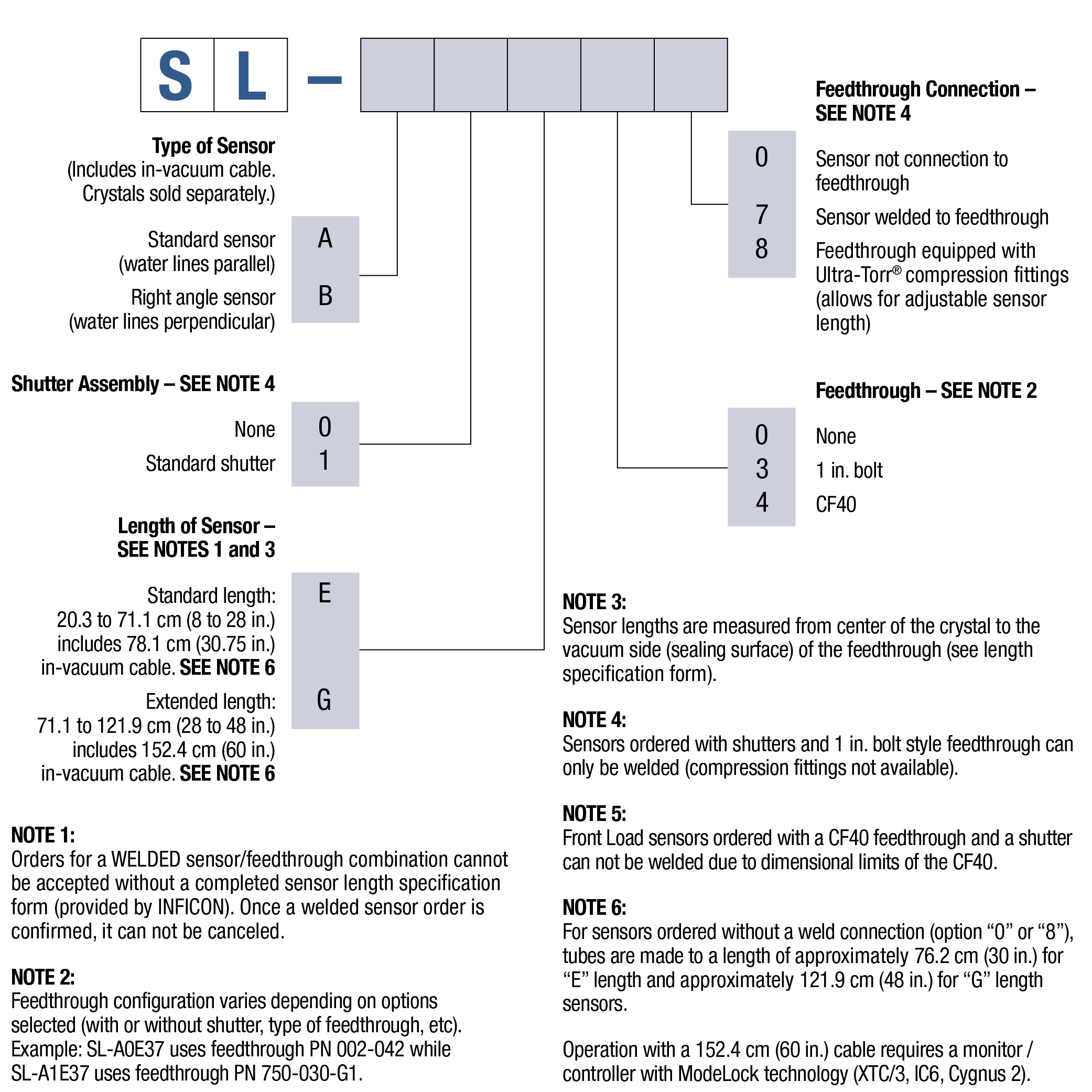

Maximum bakeout temp with no water : 130° C Maximum operating isothermal environment temperature with minimum water flow : 400° C SL-A _ _ _ _ Size (maximum envelope without shutter) : 1.063 in. x 2.42 in. x 0.69 in. (27 mm x 61.47 mm x 17.53 cm) SL-B_ _ _ _ Size (maximum envelope without shutter) : 1.11 in. x 1.06 in. x 1.06 in. (28.19 mm x 26.92 mm x 26.92 mm) Water tube : 1/8 in. (3.175 mm) O.D. seamless stainless steel Crystal exchange : Front loading; self-contained package for ease of exchange Mounting : Two #4-40 tapped holes on the back of the sensor body Installation Requirements Feedthrough : 2 pass water 3/16 in. (4.8 mm) O.D. tubing with Microdot® coax connector Other : XIU or Oscillator to match specific controller, solenoid valve assembly 750-420-G1 for shuttered sensors Water flow rate : Minimum water flow 150-200 cc/min, 30° C max Water quality : Coolant should not contain chlorides as stress corrosion cracking may occur. Extremely dirty water may result in loss of cooling capacity. Materials Body and holder : 304 type stainless steel Springs, electrical contacts : Au plated Be-Cu Water tubes : S-304, 0.125 in. (3.175 mm) O.D. x 0.015 in. (0.381 mm) wall thickness seamless stainless steel tubing Connector (Microdot) : Stainless steel, Teflon® and glass insulated Insulators : >99% Al2O3 Wire : Teflon insulated copper Braze : Vacuum process high temperature Ni-Cr alloy Crystal : 0.550 in. (13.97 mm) Diameter Feedthrough Specifications 1 in. bolt and Ultra-Torr (compression fitting) terminations : Materials : 304 stainless steel, Teflon®, ceramic, beryllium nickel, VITON® Temperature : Operational environment to 300° C with water cooling or 165° C without Mounting : 1.015 in. ±0.010 in. diameter aperture Feedthrough Specifications CF 40 (2 3/4 in. ConFlat) welded terminiations : Materials : 304 stainless steel, Teflon, ceramic, beryllium nickel Temperature : Operational environment to 450° C with water cooling or 165° C without Mounting : Mates with 2 ¾ in. ConFlat type flanges with 1.375 in. I.D. min. |
| quantity | 0 |
| reg date | 2017-01-18 17:22:33 |
| single | No |
