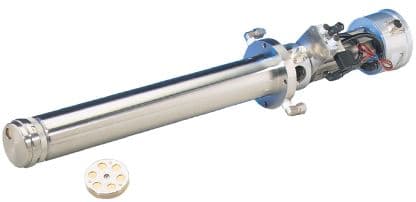

RSH-600 Rotary Sensor
RSH-600 Rotary Sensor
제품 특징
- RSH-600 Rotary Sensor Heads are designed for demanding processes, employing very thick films and several different materials. The RSH-600 holds six crystals in a thermally shielded, water-cooled housing, ensuring excellent crystal performance in temperature environments up to 300°C. Crystals are housed in an easy to remove Teflon® and stainless steel crystal holder.
제품 상세 정보
| 항목 | 값 |
|---|---|
| connector | No |
| managed | No |
| overview order | 1 |
| product order | 11 |

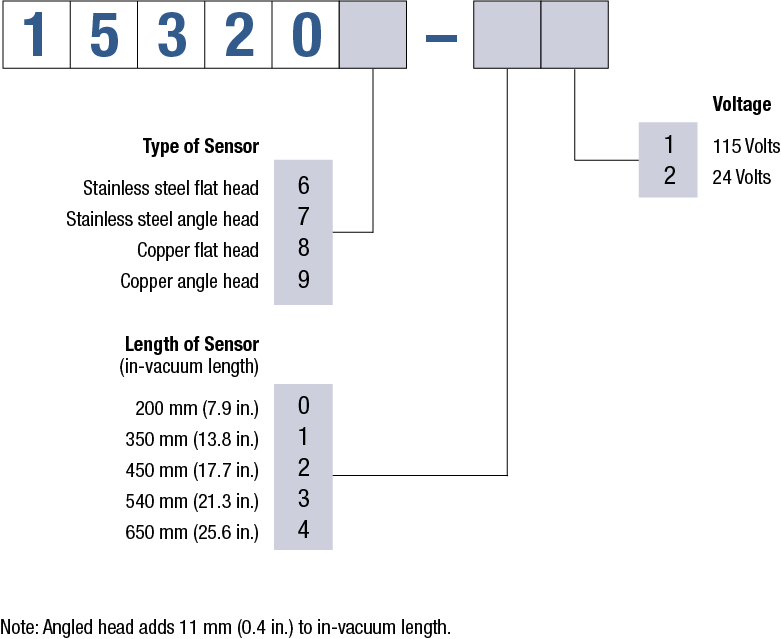

| product spec | Type : RSH-600 Rotary Sensor
Number of crystals : Six Crystal size : 14 mm (0.550 in.) diameter Installation aperture : 50.8 mm (2.0 in.) diameter Overall length : See Data Sheet Adjustable length in vacuum : See Data Sheet Power requirements : 24 V (dc) Solenoid Valve: 21.6 - 26.4 V (dc), 40 mA 115 V (ac) Solenoid Valve: 90 - 132 V (ac), 36/32 mA rms (50/60 Hz) Crystal switching method : Air Actuated @ 55 psi (4 kg/cm2) regulated Cooling method : Water cooled at 5 L/m at 2 kg/cm2 (28 psi) (Do not allow to freeze) Air and water connections : One ¼ in. quick connect for air, two ¼ in. compression fittings for water Maximum bakeout temperature without water : 130° C Operating temperature (with water cooling) : 300° C max with stainless steel head cover 400° C max with copper head cover Weight : RSH-600 ~ 8.5 lb. (3.8 kg), varies with overall length Materials : 304 stainless steel, Teflon®, Beryllium Nickel |
| quantity | 0 |
| reg date | 2017-01-18 17:22:33 |
| single | No |
