VACUUM CHAMBERS, COLLARS, BASEPLATES & SYSTEM INTEGRATION
하위 카테고리
세부 카테고리로 이동하여 더 전문화된 제품을 확인하세요.
이미지 없음
Stainless Steel Bell Jar Chambers
이미지 없음
Custom Stainless Steel Vacuum Chambers
이미지 없음
The Universal Stainless Steel Chamber
이미지 없음
System Integration for High and Ultra-High Vacuum Applications
이미지 없음
Feedthrough Collar
이미지 없음
Stainless Steel Baseplates and Base Wells for Vacuum Chambers
총 6개 제품
상위 분류: Huntington
Stainless Steel Bell Jar Chambers
Huntington Stainless Steel bell jar chambers feature a single viewport, lifting lug for easy transportability and an O-ring seal at the base for mounting to baseplate or base well of your choice. Bell jars are some of the simplest and most cost-effective chamber solutions available. Standard sizes shown, custom sizes and/or viewport configurations can be quoted upon request. Please call Technical Sales at 800-227-8059 or use the RFQ link below.STAINLESS STEEL BELL JARSTANDARD & CUSTOM, DUAL WALL for CRYOGENICS APPLICATIONS AVAILABLE
Custom Stainless Steel Vacuum Chambers
We manufacture many different components for the ultra high vacuum market, including valves, feedthroughs and motion/positioning devices. However, we take greatest pride in our custom vacuum chambers. From the engineering staff’s expertise in working with your design on a custom project, to the highly skilled technicians on the production floor, every Huntington employee is dedicated to one primary goal: Satisfying our customers with the highest quality custom chambers in a timely and cost effective manner. By its very nature a custom chamber must be quoted as standard pricing does not apply.YOUR DESIGN & SPECIFICATIONSCUSTOMBUILT to your SPECIFICATIONS or HAVE US DESIGN ONE FOR YOU

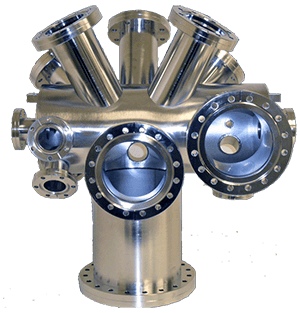

The Universal Stainless Steel Chamber
Huntington has designed an ultra-high vacuum Universal Vacuum Chamber suitable for a variety of research experiments including surface science. The chamber is made from 304 stainless steel and has a 14 inch nominal diameter with a number of ports for mounting instrumentation, sample transfer, viewports, roughing and UHV pumps.STAINLESS STEELUNIVERSALA GREAT FIRST CHAMBER, FEATURES ALL of the MOST COMMONLY USED PORTS

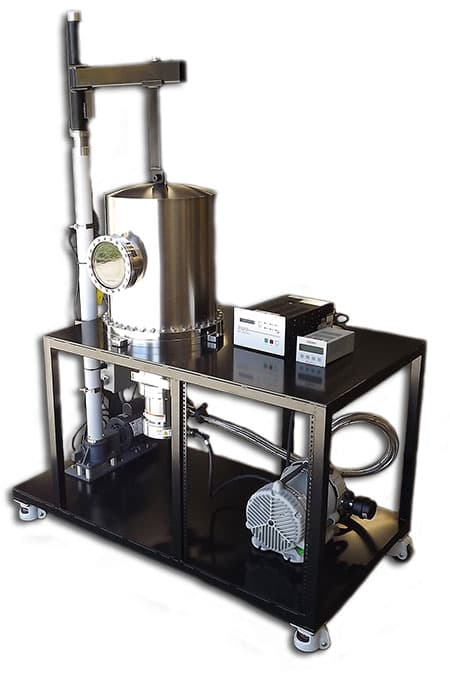

System Integration for High and Ultra-High Vacuum Applications
"Huntington offers Systems Integration with mobile and stationary stands that include all the basic components needed to operate a high vacuum system. Excellent for use in educational environments providing students and academicians the ability to perform vacuum experiments in the lab in a cost effective manner. The motorized lifting arm allows the chamber to be raised and held in the open position, then a new experiment is placed on the base. Replace the seal, lower the chamber and retighten. A single stand can accommodate many hundreds of experiments over it’s lifetime. Another advantage to using a portable stand would be the quick turn-around for an experimenter to perform a test without waiting for time reserved on the main facility chamber. This would free up valuable resources and allow for a more efficient work flow."TURNKEY VACUUMWORKSTATIONMOBILE or STATIONARY, STANDARD BELL JAR or CUSTOM DESIGNS

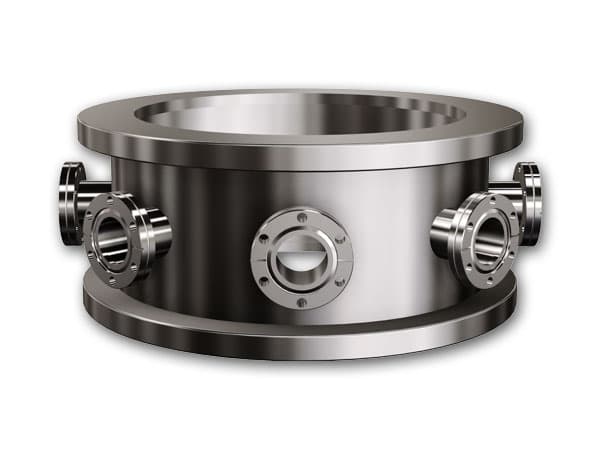

Feedthrough Collar
Huntington’s Feedthrough Collars are made of 304 Stainles Steel and feature a choice of “L-gasket” or O-ring style base flanges with a compliment of VAC-U-FLANGE® (CF) or ISO-KF port flanges. As with most of our products custom sizes or configurations are available.STEEL FEEDTHROUGHCOLLARMULTIPLE SIZE & PORT CHOICES, ISO & VAC-U-FLANGE® PORTS

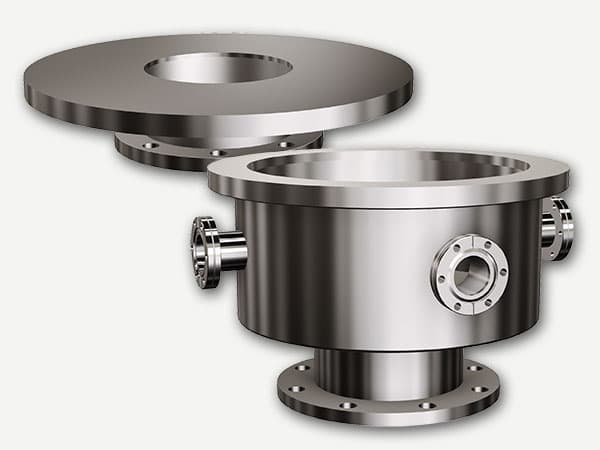

Stainless Steel Baseplates and Base Wells for Vacuum Chambers
Stainless Steel Baseplates and Base Wells for Vacuum Chambers Used primarily with Bell Jar Chambers, Huntington’s Baseplates and Basewells help to complete a chamber project based on the time-tested Bell Jar Chamber style. Standard designs are shown below or request a custom design. Add a Gate Valve or one of our fast-acting Pneumatic Butterfly valves to the pump port to maintain the envelope pressure. Due to shipping restrictions all Baseplates & Basewells are available by quote only.SST BASEPLATES and BASE WELLSSTANDARD SIZES for BELL JAR CHAMBERS or CUSTOM BUILT to your DESIGN
